UPD78F0502AMCA2-CAB-E1-Q-G

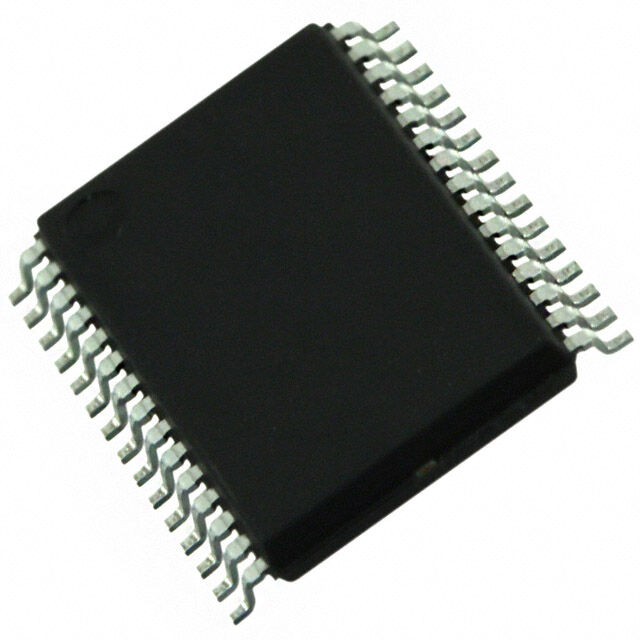

lmages are for reference only.UPD78F0502AMCA2-CAB-E1-Q-G
IC MCU 8BIT 24KB FLASH 30LSSOP
Datasheet30-LSSOP (0.240", 6.10mm Width)
97,865 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
78K/0 78K0/Kx2 Microcontroller IC 8-Bit 20MHz 24KB (24K x 8) FLASH 30-LSSOP
UPD78F0502AMCA2-CAB-E1-Q-G
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Renesas Electronics Corporation |
| Series | 78K0/Kx2 |
| Packaging | Bulk |
| RoHS Status | |
| Core Processor | 78K/0 |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | 3-Wire SIO, I2C, LINbus, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 23 |
| Program Memory Size | 24KB (24K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 4x10b SAR |
| Oscillator Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 30-LSSOP |
| Package / Case | 30-LSSOP (0.240", 6.10mm Width) |
| Base Product Number | UPD780502 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|
| Part Number | UPD78F0502AMCA2-CAB-E2-Q-G | UPD78F0502AMCA2-CAB-G | UPD78F0502AMCA2-CAB-M1-G | UPD78F0502AFC-AA3-A |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC MCU 8BIT 24KB FLASH 30LSSOP | IC MCU 8BIT 24KB FLASH 30LSSOP | IC MCU 8BIT 24KB FLASH 30LSSOP | IC MCU 8BIT 24KB FLASH 36LGA |
| Series | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| Packaging | Bulk | Tray | Tray | Tray |
