Product CatalogPart Number
URA2424YMD-15WR3
Manufacturer
Mornsun America, LLCDescription
DC DC CONVERTER +/-24V 15W
Datasheet
DatasheetPackage
6-DIP Module
In Stock
30,943 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
URA2424YMD-15WR3
URA2424YMD-15WR3
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 24V -24V 312mA, 312mA 9V - 36V Input
Quick Inquiry
URA2424YMD-15WR3
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | -24V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 312mA, 312mA |
| Power (Watts) | 15 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Efficiency | 89% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | URA2424YMD-10WR3 | URA2424YMD-20WR3 | URA2424YMD-6WR3 | URA2424LD-30WHR3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER +/-24V 10W | DC DC CONVERTER +/-24V 20W | DC DC CONVERTER +/-24V 6W | ISOLATED MODULE DC DC CONVERTER |
| Series | ||||
| Packaging | URA2424YMD-10WR3 (10W) | URA2424YMD-20WR3 (20W) | URA_YMD-6WR3 (6W) | URA_LD-30WR3 (30W) |
Customers Also Interested in
Recommended Products

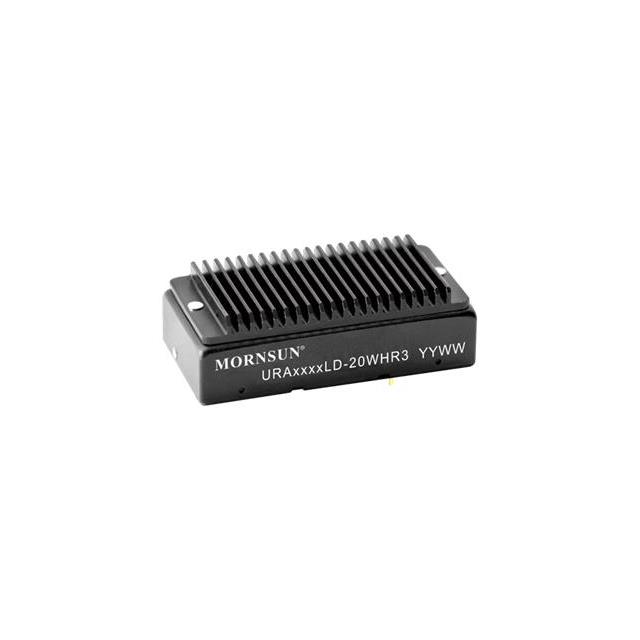

URA2405LD-20WHR3
Mornsun America, LLC
URA2405LD-20WHR3
Mornsun America, LLC
URA2405LD-20WR3
Mornsun America, LLC

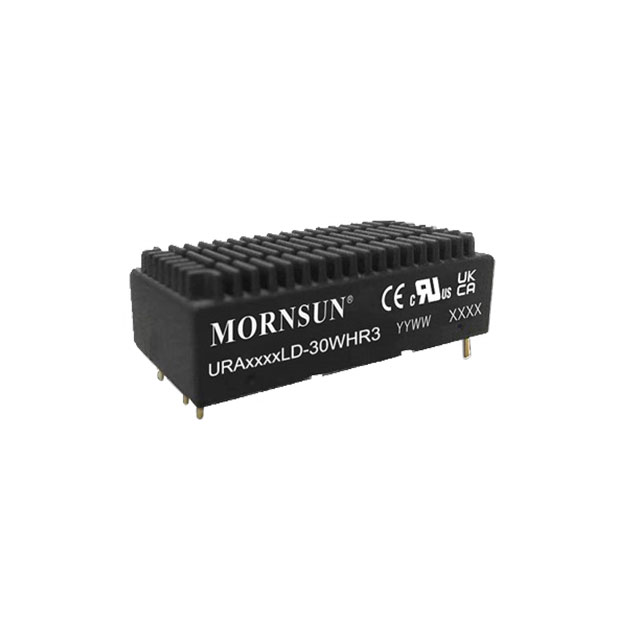

URA2405LD-30WHR3
Mornsun America, LLC

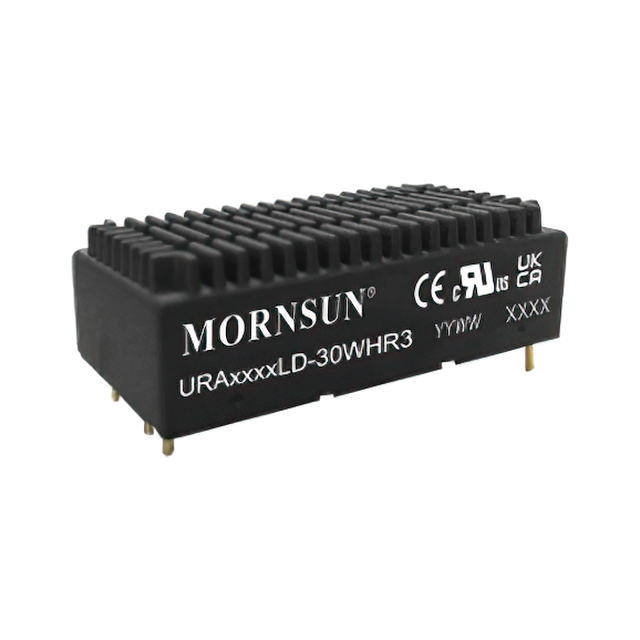

URA2405LD-30WR3
Mornsun America, LLC

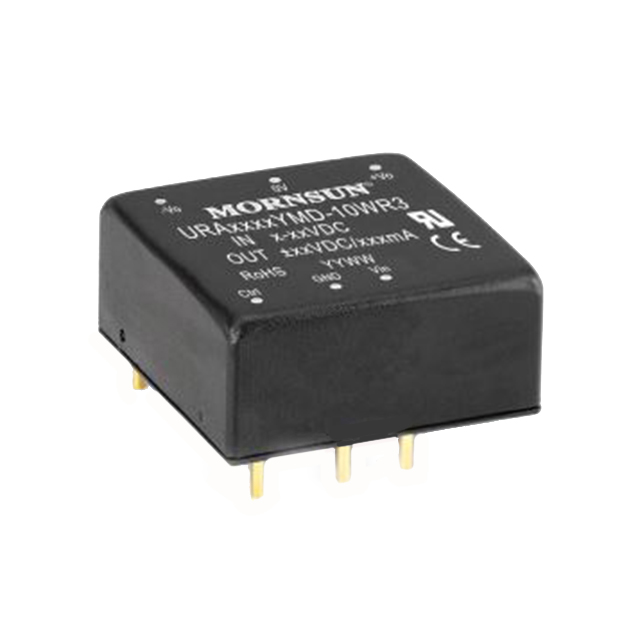

URA2405YMD-10WR3
Mornsun America, LLC
URA2405YMD-15WR3
Mornsun America, LLC
URA2405YMD-20WR3
Mornsun America, LLC
URA2405YMD-6WR3
Mornsun America, LLC

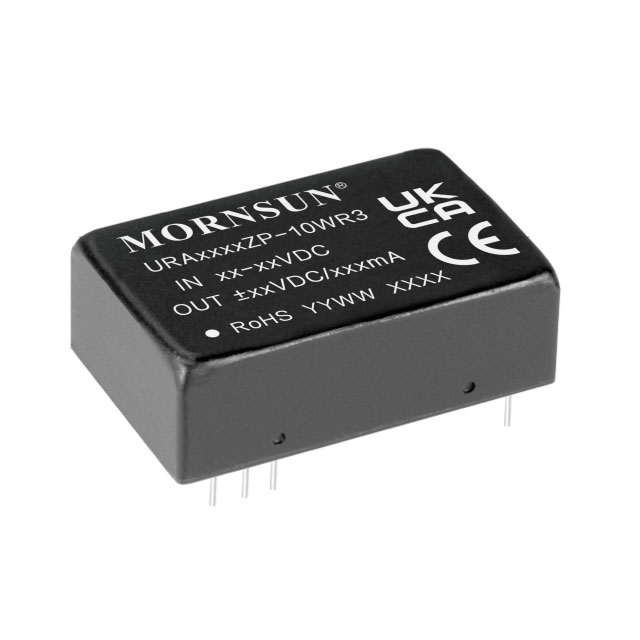

URA2405ZP-10WR3
Mornsun America, LLC
URA2405ZP-6WR3
Mornsun America, LLC
URA2409LD-20WHR3
Mornsun America, LLC

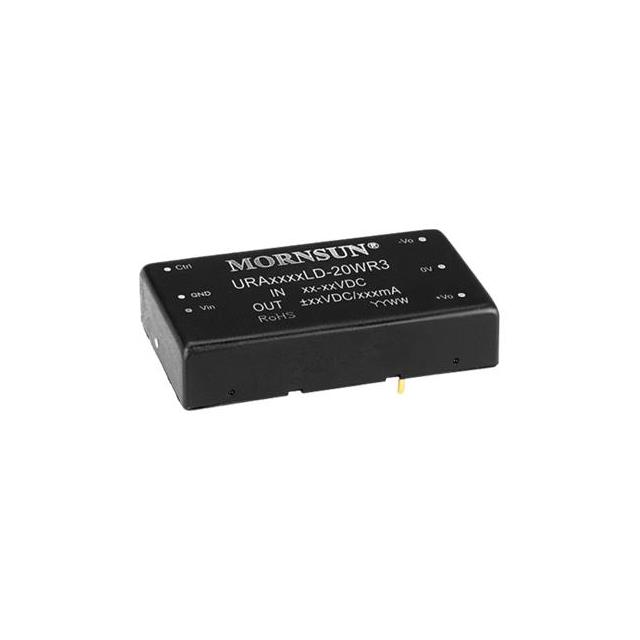

URA2409LD-20WR3
Mornsun America, LLC

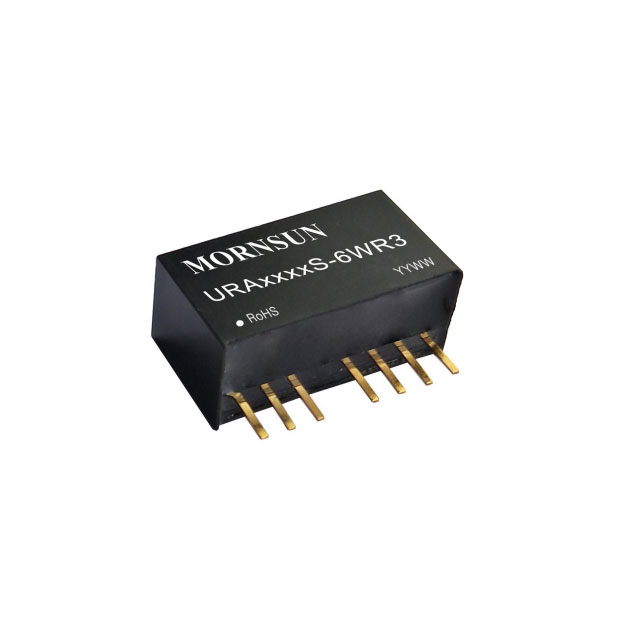

URA2409S-6WR3
Mornsun America, LLC
URA2409YMD-10WR3
Mornsun America, LLC
URA2409YMD-6WR3
Mornsun America, LLC

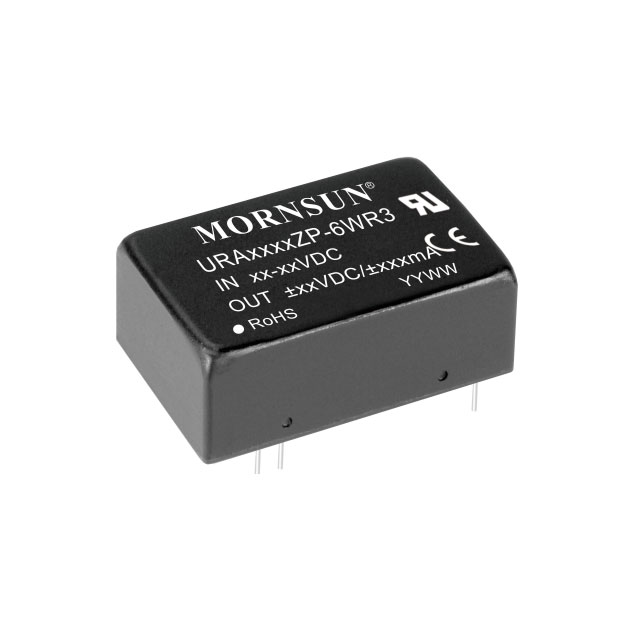

URA2409ZP-6WR3
