URA4812ZP-10WR3
lmages are for reference only.URA4812ZP-10WR3
DC DC CONVERTER +/-12V 10W
Datasheet24-DIP Module, 9 Leads
16,993 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 12V -12V 416mA, 416mA 18V - 75V Input
URA4812ZP-10WR3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 416mA, 416mA |
| Power (Watts) | 9.9 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 87% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 9 Leads |
| Size / Dimension | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, UKCA |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |

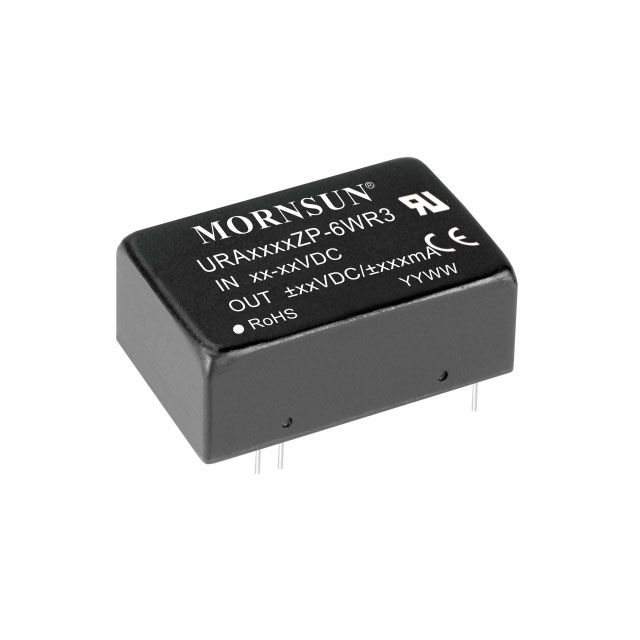

| Part Number | URA4812ZP-6WR3 | URA4805LD-20WHR3 | URA4805LD-20WR3 | URA4805LD-30WHR3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER +/-12V 6W | ISOLATED MODULE DC DC CONVERTER | ISOLATED MODULE DC DC CONVERTER | ISOLATED MODULE DC DC CONVERTER |
| Series | ||||
| Packaging | URA4812ZP-6WR3 (6W) | URA_LD-20WR3 (20W) | URA_LD-20WR3 (20W) | URB_LD-30WR3 (30W) |
