URD480512YMD-10WR3
lmages are for reference only.URD480512YMD-10WR3
ISOLATED MODULE DC DC CONVERTER
Datasheet7-DIP Module
16,783 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 5V 12V 1A, 417mA 18V - 75V Input
URD480512YMD-10WR3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A, 417mA |
| Power (Watts) | 10 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 84% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module |
| Size / Dimension | 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, UKCA |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |

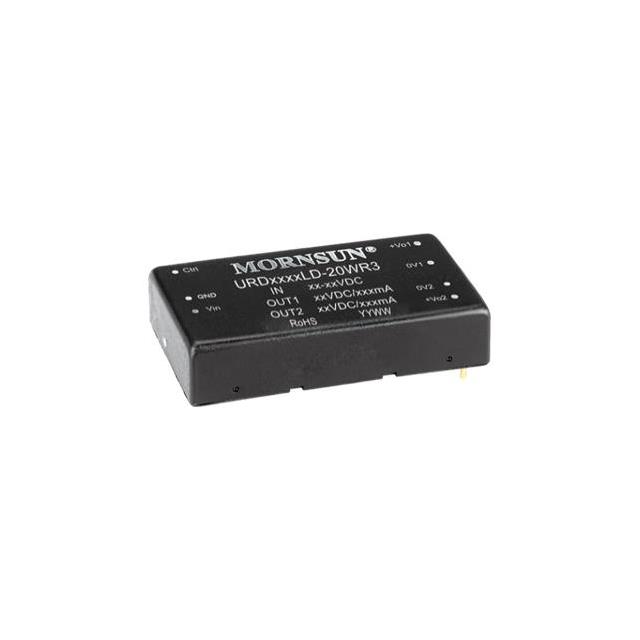

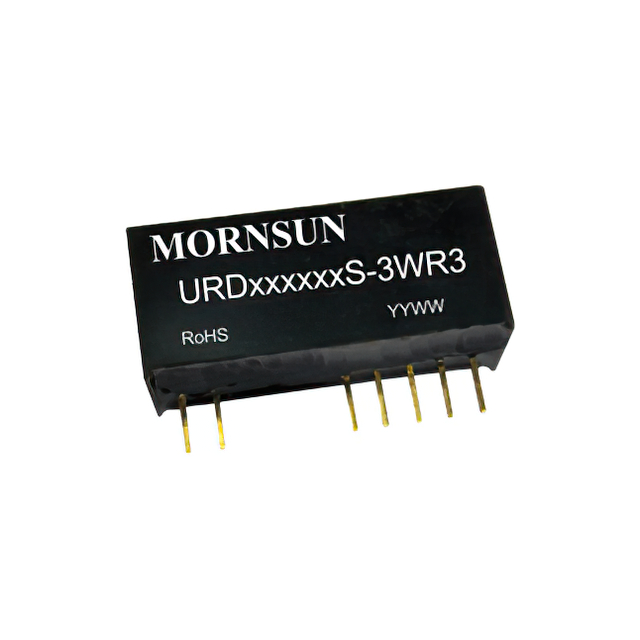

| Part Number | URD480512LD-20WR3 | URD480512S-3WR3 | URD480505LD-20WR3 | URD480505S-3WR3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ISOLATED MODULE DC DC CONVERTER | ISOLATED MODULE DC DC CONVERTER | ISOLATED MODULE DC DC CONVERTER | ISOLATED MODULE DC DC CONVERTER |
| Series | ||||
| Packaging | URD_LD-20WR3 (20W) | URD_S-3WR3 (3W) | URD_LD-20WR3 (20W) | URD_S-3WR3 (3W) |
