USVD2-B10M-010-02
lmages are for reference only.USVD2-B10M-010-02
RES NETWORK 2 RES MULT OHM 4SIP
Datasheet4-SIP Variation
26,818 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100k, 9.9M Ohm ±0.1% 100mW Power Per Element Voltage Divider 2 Resistor Network/Array ±10ppm/°C 4-SIP Variation
USVD2-B10M-010-02
| Category | Resistors - Resistor Networks-Arrays - |
| Manufacturer | Caddock Electronics Inc. |
| Series | USVD |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Circuit Type | Voltage Divider |
| Resistance (Ohms) | 100k, 9.9M |
| Tolerance | ±0.1% |
| Number of Resistors | 2 |
| Resistor Matching Ratio | ±0.01% |
| Resistor-Ratio-Drift | ±2ppm/°C |
| Number of Pins | 4 |
| Power Per Element | 100mW |
| Temperature Coefficient | ±10ppm/°C |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Applications | Voltage Divider (TCR Matched) |
| Mounting Type | Through Hole |
| Package / Case | 4-SIP Variation |
| Supplier Device Package | - |
| Size / Dimension | 1.500" L x 0.155" W (38.10mm x 3.94mm) |
| Height - Seated (Max) | 0.520" (13.21mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

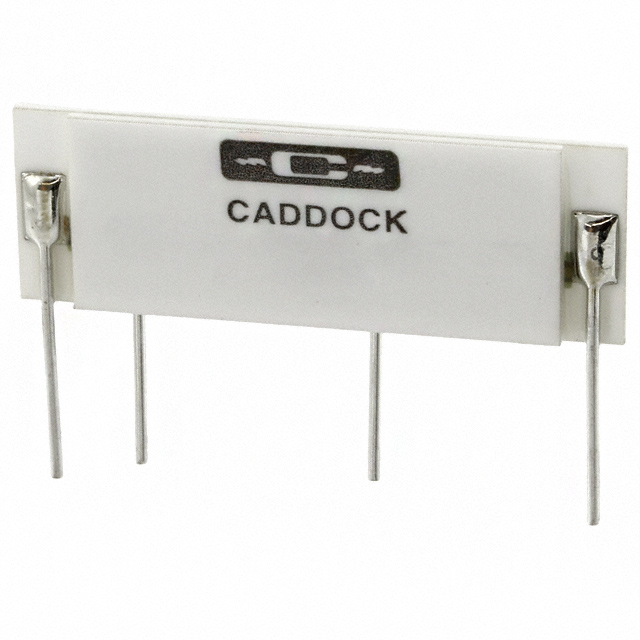

| Part Number | USVD2-A10M-010-02 | Y1691V0322BA9L | 766143393GP | Y0006V0026BV0L |
| Manufacturer | Caddock Electronics Inc. | VPG Foil Resistors | CTS Resistor Products | VPG Foil Resistors |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | |
| Description | RES NETWORK 2 RES MULT OHM 4SIP | 300144ZT 50R/4K95 B A | RES ARRAY 7 RES 39K OHM 14SOIC | RES NTWRK 2 RES MULT OHM RADIAL |
| Series | USVD | 300144Z | 766 | 300144 |
| Packaging | Bulk | Bulk | Tube | Bulk |
