UWF1215S-1WR3
lmages are for reference only.UWF1215S-1WR3
DC DC CONVERTER,1W,15VDC
Datasheet8-SIP Module, 7 Leads
86,386 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 15V 67mA 4.5V - 36V Input
UWF1215S-1WR3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 67mA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 74% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-SIP Module, 7 Leads |
| Size / Dimension | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
| Product Attribute |  |
 |
 |
 |

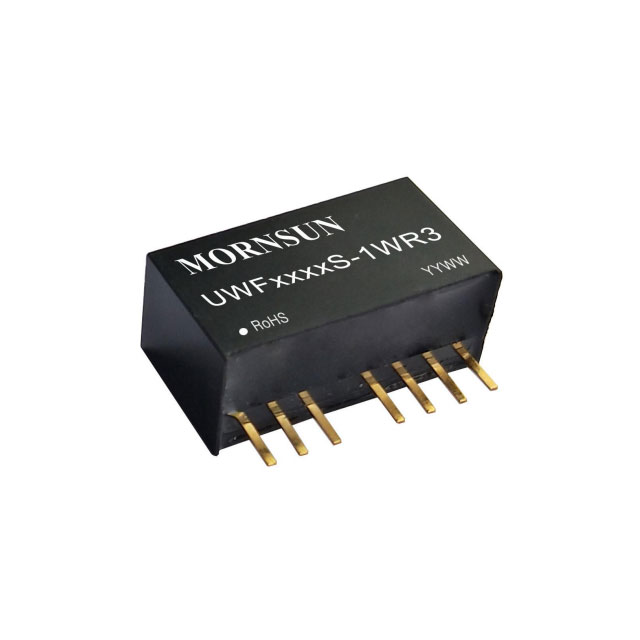

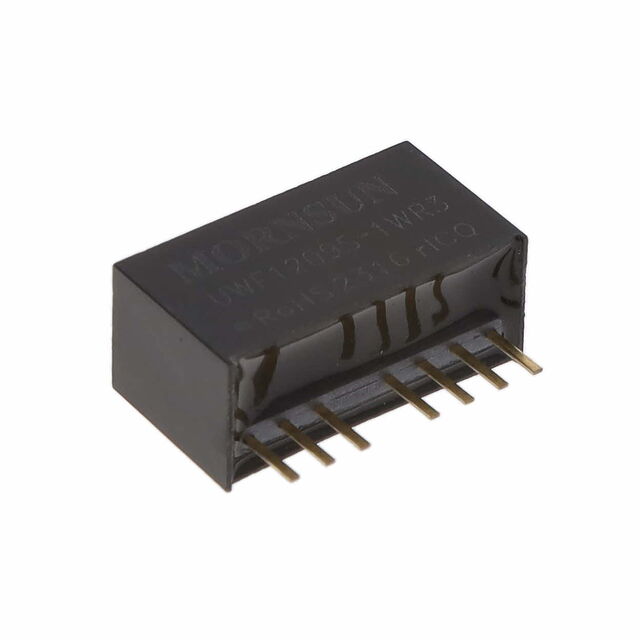

| Part Number | UWF1215S-3WR3 | UWF1205S-1WR3 | UWF1205S-3WR3 | UWF1209S-1WR3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER,3W,15VDC | DC DC CONVERTER,1W,5VDC | DC DC CONVERTER,3W,5VDC | DC DC CONVERTER 9V 1W |
| Series | ||||
| Packaging | UWF_S-3WR3 (3W) | UWF_S-1WR3 (1W) | UWF_S-3WR3 (3W) | UWF1209S-1WR3 (1W) |
