V19T16-EC100
lmages are for reference only.V19T16-EC100
SWITCH SNAP ACT SPST-NC 16A 125V
Datasheet-
75,669 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Switch SPST-NC Chassis Mount
V19T16-EC100
| Category | Switches - Limit Switches - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | V19 |
| Packaging | Box |
| RoHS Status | |
| Base Product Number | V19T1 |
| Circuit | SPST-NC |
| Switch Function | On-Mom |
| Current Rating (Amps) | 16A (AC), 600mA (DC) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 V |
| Actuator Type | Round (Pin Plunger) |
| Mounting Type | Chassis Mount |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Ingress Protection | IP40 |
| Electrical Life | 10,000 Cycles |
| Mechanical Life | 1,000,000 Cycles |
| Features | - |
| Operating Force | 100gf |
| Release Force | 15gf |
| Operating Position | 0.579" (14.7mm) |
| Pretravel | 0.047" (1.2mm) |
| Differential Travel | 0.016" (0.4mm) |
| Overtravel | 0.039" (1.0mm) |
| Operating Temperature | -25°C ~ 125°C |
| Product Attribute | |
|
|
 |

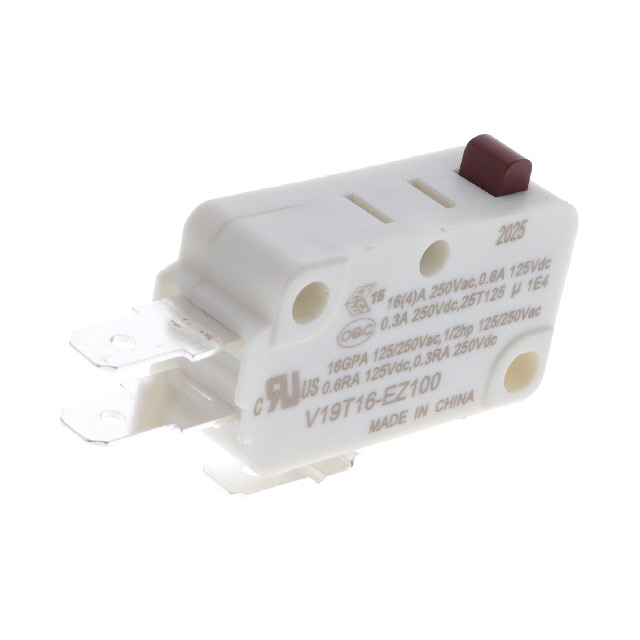

| Part Number | V19T16-C2C400 | V19T16-CC400 | V19T16-CZ300B05 | V19T16-EZ100 |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | BASIC SWITCH | BASIC SWITCH | SWITCH SNAP ACTION SPDT 16A 125V | SWITCH SNAP ACTION SPDT 16A 125V |
| Series | - | * | V19 | V19 |
| Packaging | Bulk | Bulk | Box | Box |
