V23026B1102B201
lmages are for reference only.V23026B1102B201
RELAY GEN PURPOSE SPDT 1A 12V
Datasheet-
74,437 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPDT (1 Form C) Through Hole
V23026B1102B201
| Category | Relays - Signal Relays-Up to 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | V23026, AXICOM |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 1 A |
| Switching Voltage | 150VAC, 125VDC - Max |
| Load - Max Switching | 150VA, 125W |
| Coil Type | Latching, Dual Coil |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | - |
| Operate Time | 2 ms |
| Release Time | 2 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Palladium Nickel (PdNi), Rhodium (Rh), Gold (Au) |
| Approval Agency | cURus |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Base Product Number | 1393774 |
| Coil Current | 8 mA |
| Coil Resistance | 1.5 kOhms |
| Product Attribute |  |
 |
 |
 |

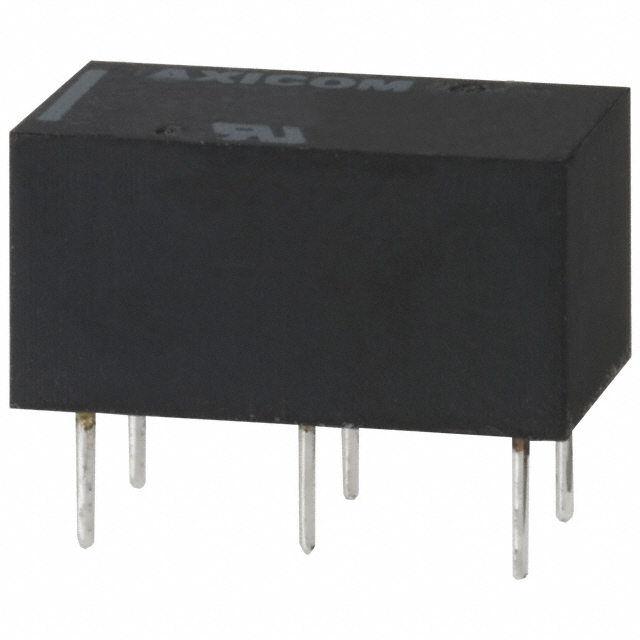

| Part Number | V23026B1101B201 | V23026B1103B201 | V23026B1105B201 | V23026B1106B201 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | RELAY GENERAL PURPOSE SPDT 1A 5V | RELAY GEN PURPOSE SPDT 1A 15V | RELAY GENERAL PURPOSE SPDT 1A 9V | RELAY GENERAL PURPOSE SPDT 1A 3V |
| Series | V23026, AXICOM | V23026, AXICOM | V23026, AXICOM | V23026, AXICOM |
| Packaging | Tube | Tube | Tube | Tube |
