V23105A5401A201

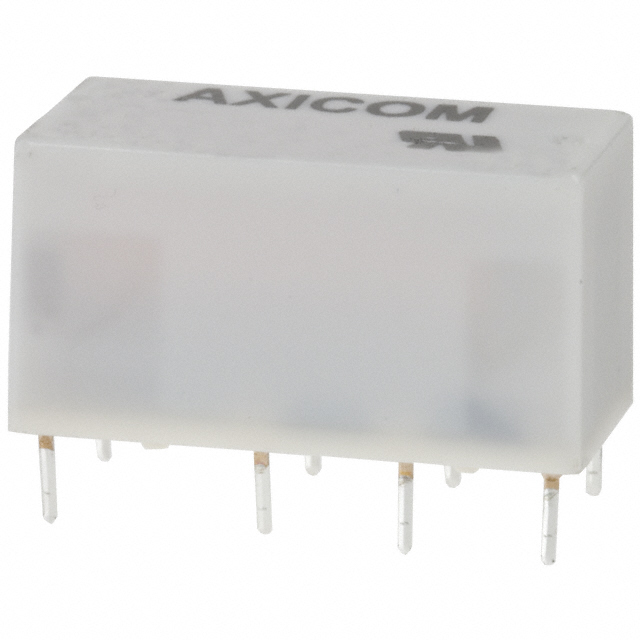

lmages are for reference only.V23105A5401A201
RELAY TELECOM DPDT 3A 5V
Datasheet-
70,062 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Telecom Relay DPDT (2 Form C) 5VDC Coil Through Hole
V23105A5401A201
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | V23105, AXICOM |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 5VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 3 A |
| Switching Voltage | 250VAC, 220VDC - Max |
| Load - Max Switching | 750VA, 660W |
| Coil Current | 80 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | - |
| Coil Insulation | - |
| Must Operate Voltage | 3.5 VDC |
| Must Release Voltage | 0.25 VDC |
| Operate Time | 6 ms |
| Release Time | 4 ms |
| Operating Temperature | -40°C ~ 85°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | cURus |
| Relay Type | Telecom |
| Grade | - |
| Qualification | - |
| Coil Resistance | 62 Ohms |
| Base Product Number | V23105 |
| Product Attribute |  |
 |
 |
 |
| Part Number | V23105A5402A201 | V23105A5403A201 | V23105A5405A201 | V23105A5406A201 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | RELAY TELECOM DPDT 3A 6V | RELAY TELECOM DPDT 3A 12V | RELAY TELECOM DPDT 3A 24V | RELAY TELECOM DPDT 3A 9V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tube | Tube | Box | Tube |
