V23132B2002X025
lmages are for reference only.V23132B2002X025
HIGH CURRENT RELAYS & MODULES
Datasheet-
14,013 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
V23132B2002X025
| Category | Relays - Automotive Relays - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | High Current Relay 150 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Coil Type | Non Latching |
| Coil Voltage | 24VDC |
| Contact Form | SPST-NO (DM) (1 Form X) |
| Contact Rating (Current) | 130 A |
| Switching Voltage | 24VDC - Nom |
| Must Operate Voltage | 14.4 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 25 ms |
| Release Time | 8 ms |
| Features | IP67 - Dust Tight, Waterproof |
| Mounting Type | Chassis Mount |
| Termination Style | Stud |
| Operating Temperature | -40°C ~ 125°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Coil Power | - |
| Coil Resistance | 141 Ohms |
| Base Product Number | V23132 |
| Coil Current | 170 mA |
| Product Attribute | |
 |
|
|

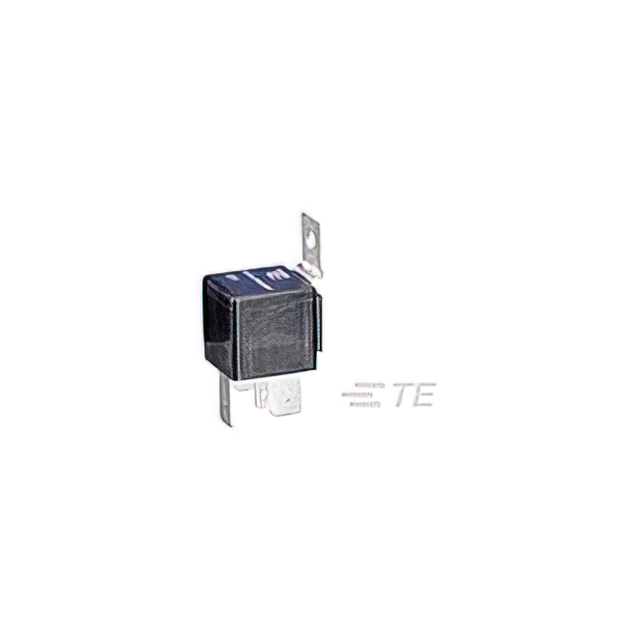

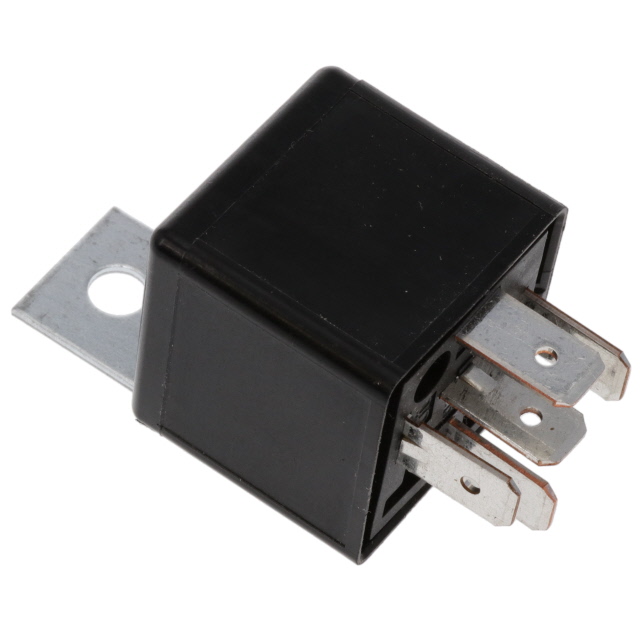

| Part Number | V23132B2002X025 | V23134-A4052-X543 | V23134-A4052-X543 | V23134A0052C643 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | HIGH CURRENT RELAYS & MODULES | RELAY AUTOMOTIVE SPDT | RELAY AUTOMOTIVE SPDT | Power/Signal Relay, 1 Form C, SP |
| Series | High Current Relay 150 | VF4 | VF4 | * |
| Packaging | Bulk | Bulk | Bulk | Bulk |
