V35PWL63HM3/I

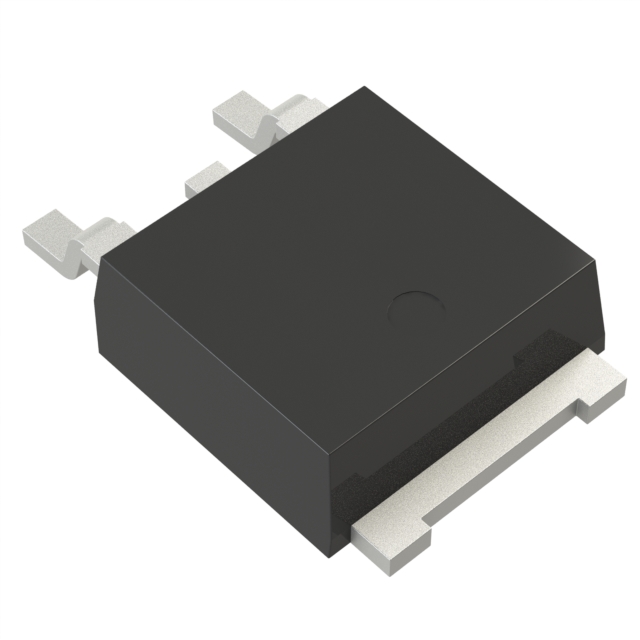

lmages are for reference only.V35PWL63HM3/I
DIODE SCHOTTKY 60V 35A SLIMDPAK
DatasheetTO-252-3, DPAK (2 Leads + Tab), SC-63
42,101 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 60 V 35A Surface Mount SlimDPAK
V35PWL63HM3/I
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Current - Average Rectified (Io) | 35A |
| Voltage - Forward (Vf) (Max) @ If | 680 mV @ 35 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 700 µA @ 60 V |
| Capacitance @ Vr, F | 4700pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | SlimDPAK |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |

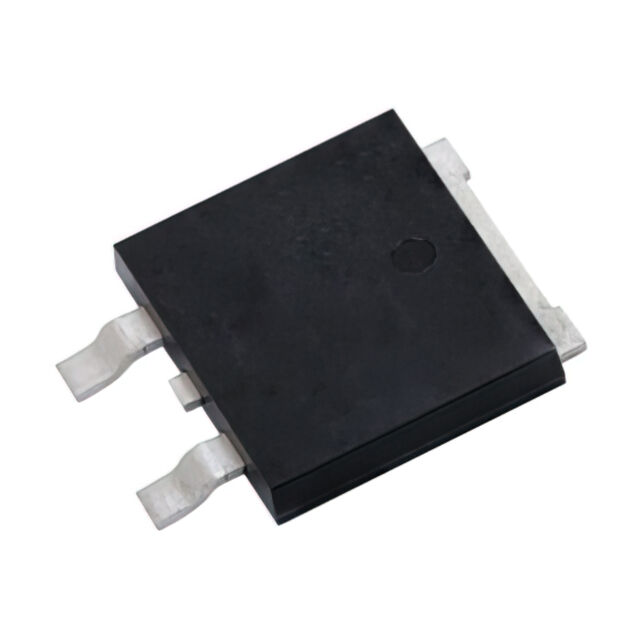

| Part Number | V35PWL63-M3/I | V35DM120-M3/I | V35DM120HM3/I | V35PW10-M3/I |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE SCHOTTKY 60V 35A SLIMDPAK | DIODE SCHOTTKY 120V 6.3A TO263AC | DIODE SCHOTTKY 120V 6.3A TO263AC | DIODE SCHOTTKY 100V 35A SLIMDPAK |
| Series | - | eSMP®, TMBS® | eSMP®, TMBS® | eSMP®, TMBS® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
