V36SE12004NRFA
lmages are for reference only.V36SE12004NRFA
DC DC CONVERTER 12V 50W
Datasheet8-DIP Module, 1/16 Brick
76,694 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 4.2A 18V - 75V Input
V36SE12004NRFA
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Delta Electronics |
| Series | Delphi V36SE (50W) |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4.2A |
| Power (Watts) | 50 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO |
| Operating Temperature | -40°C ~ 122°C |
| Efficiency | 88% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 1/16 Brick |
| Size / Dimension | 1.30" L x 0.90" W x 0.34" H (33.0mm x 22.8mm x 8.7mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | V36SE |
| Voltage - Isolation | 2.25 kV |
| Product Attribute |  |
 |
 |
|

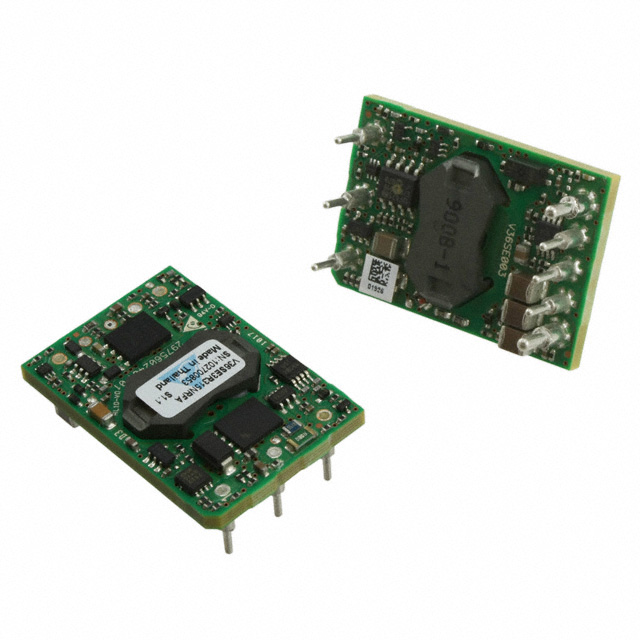

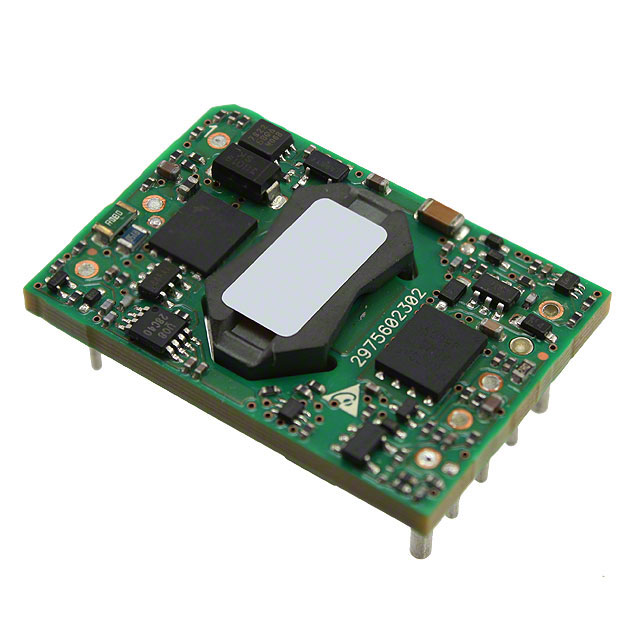

| Part Number | V36SE12005NRFA | V36SE05010NRFA | V36SE3R315NRFA | V36SE3R315NRFA |
| Manufacturer | Delta Electronics | Delta Electronics | Delta Electronics | Delta Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | PWR Sup,Batt,Condit | DC DC CONVERTER 5V 50W | DC DC CONVERTER 3.3V 50W | DC DC CONVERTER 3.3V 50W |
| Series | Delta Electronics | Delta Electronics | Delta Electronics | Delta Electronics |
| Packaging | Bulk | Tray | Tray | Tray |
