VAOB-5H2ACE2
lmages are for reference only.VAOB-5H2ACE2
LED RED/YLW DIFFUSED T/H
DatasheetRadial
25,806 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red, Yellow 640nm Red, 590nm Yellow LED Indication - Discrete 2V Red, 1.8V Yellow Radial
VAOB-5H2ACE2
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Visual Communications Company - VCC |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Yellow |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | Diffused |
| Millicandela Rating | 100mcd Red, 80mcd Yellow |
| Lens Style | Round with Domed Top |
| Lens Size | 4.80mm Dia |
| Voltage - Forward (Vf) (Typ) | 2V Red, 1.8V Yellow |
| Current - Test | 20mA Red, 20mA Yellow |
| Viewing Angle | - |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 640nm Red, 590nm Yellow |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | Radial |
| Supplier Device Package | - |
| Size / Dimension | - |
| Height (Max) | 8.60mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

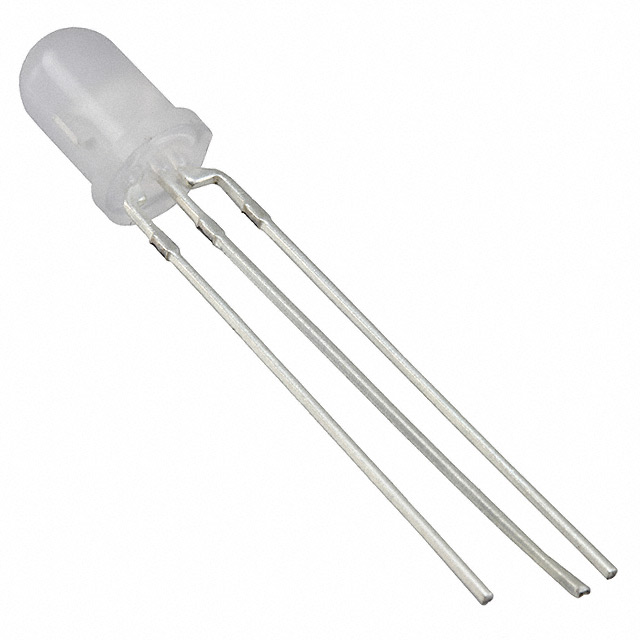

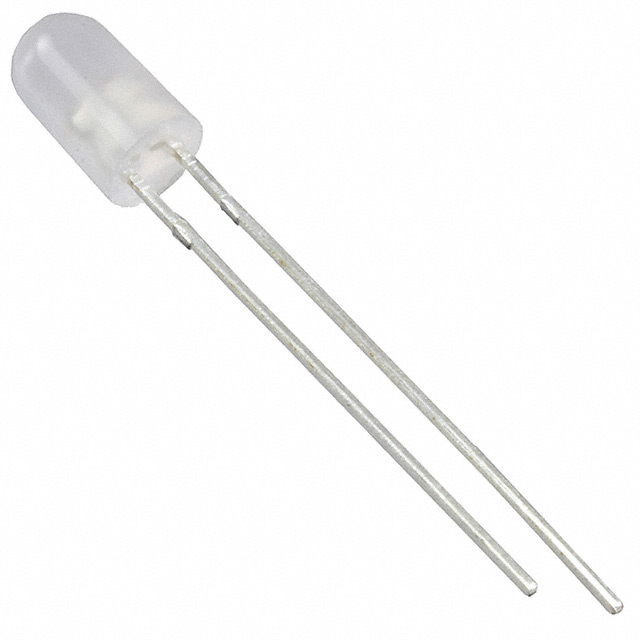

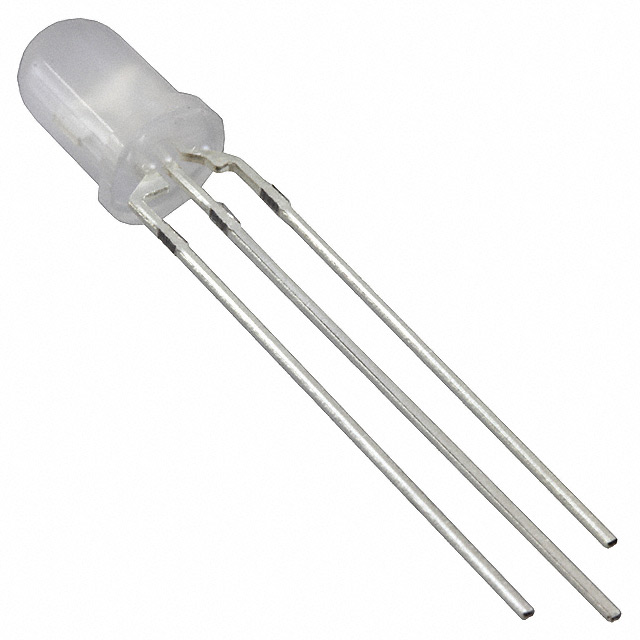

| Part Number | VAOB-5H2ADE2 | VAOB-5GACE2-C | VAOB-5GADE2-C | VAOB-5GADT2-SC |
| Manufacturer | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GREEN/RED DIFFUSED T/H | LED RED/YLW DIFFUSED T/H | LED GREEN/RED DIFFUSED T/H | LED GREEN/RED DIFFUSED T/H |
| Series | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC | Visual Communications Company - VCC |
| Packaging | Bulk | Bulk | Bulk | Bulk |
