VCB4812QBO-200WR3
lmages are for reference only.VCB4812QBO-200WR3
DC DC CONVERTER, 200W, 12V
DatasheetQuarter Brick
79,717 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 16.67A 36V - 75V Input
VCB4812QBO-200WR3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 16.67A |
| Power (Watts) | 200 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote Sense |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Efficiency | 93% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.28" L x 1.45" W x 0.40" H (57.9mm x 36.8mm x 10.1mm) |
| Supplier Device Package | Quarter Brick |
| Control Features | - |
| Approval Agency | - |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |

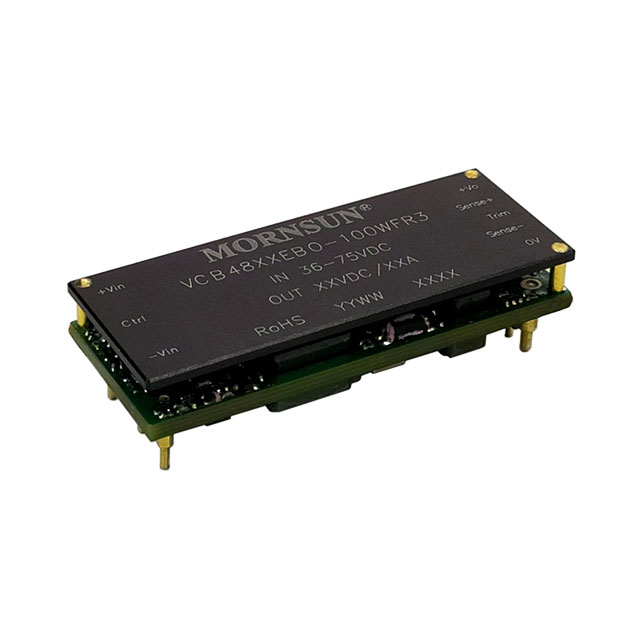

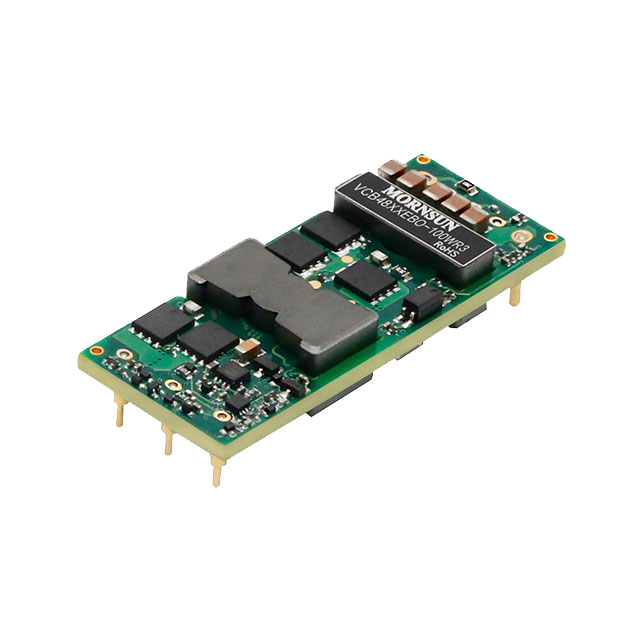

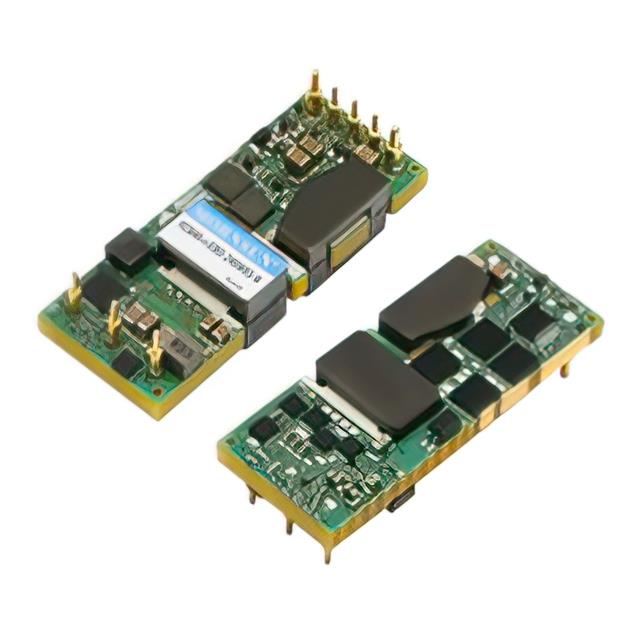

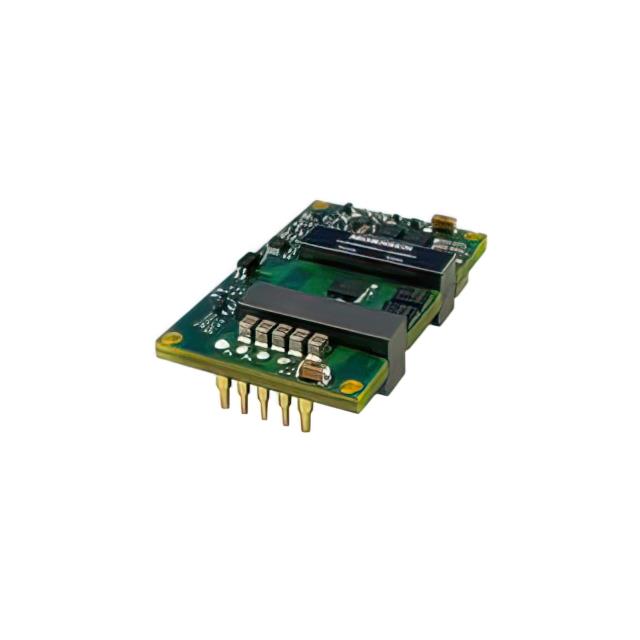

| Part Number | VCB4812QBO-200WR3-N | VCB4812EBO-100WFR3 | VCB4812EBO-100WR3 | VCB4812EBO-240WR3-N |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ISOLATED MODULE DC DC CONVERTER1 | DC DC CONVERTER, 100W, 12V, HEAT | DC DC CONVERTER, 100W, 12V | ISOLATED MODULE DC DC CONVERTER2 |
| Series | ||||
| Packaging | VCB48_QBO-200WR3N (200W) | VCB48_EBO-100WFR3 (100W) | VCB48_EBO-100WR3 (100W) | VCB48_EBO-240WR3-N (240W) |
