VCB4815QBO-200WR3
lmages are for reference only.VCB4815QBO-200WR3
DC DC CONVERTER, 200W, 15V
DatasheetQuarter Brick
89,129 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 15V 13.33A 36V - 75V Input
VCB4815QBO-200WR3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 13.33A |
| Power (Watts) | 200 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote Sense |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Efficiency | 93% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.28" L x 1.45" W x 0.40" H (57.9mm x 36.8mm x 10.1mm) |
| Supplier Device Package | Quarter Brick |
| Control Features | - |
| Approval Agency | - |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |

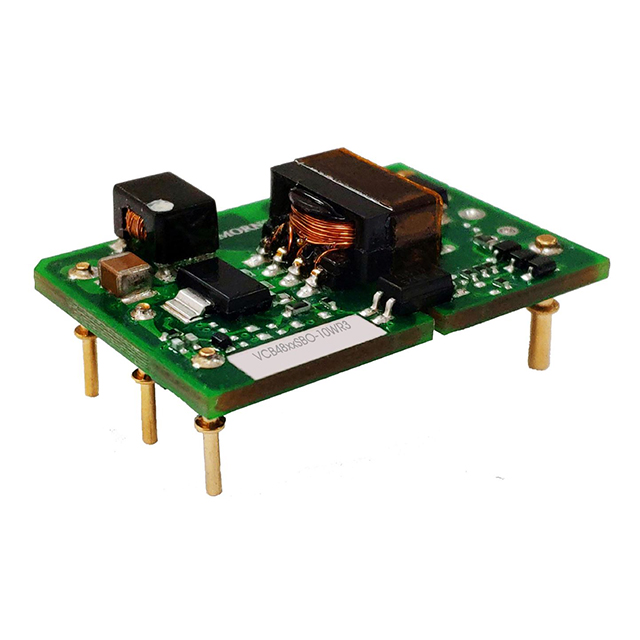

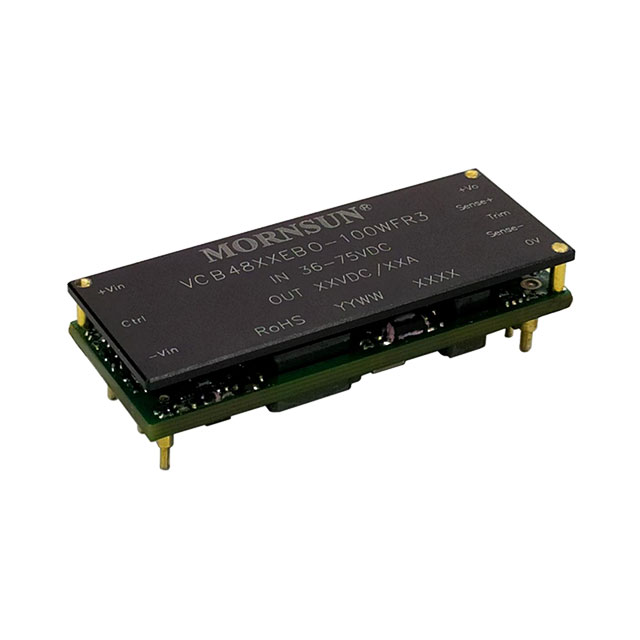

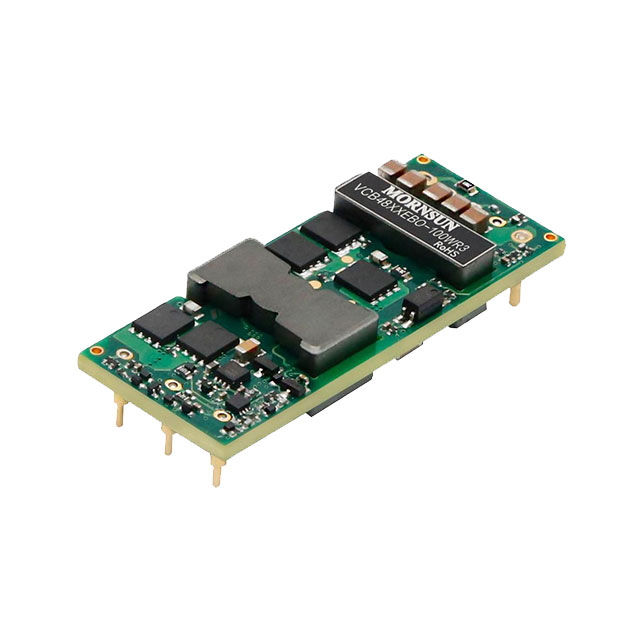

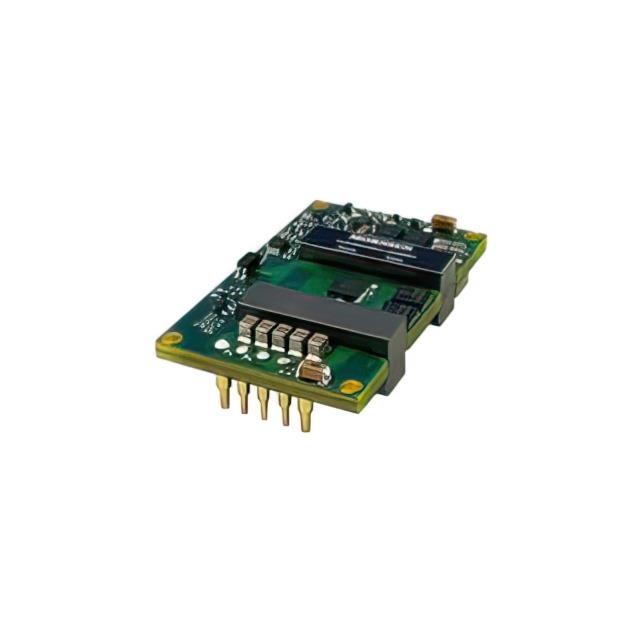

| Part Number | VCB4815QBO-200WR3-N | VCB4815EBO-100WFR3 | VCB4815EBO-100WR3 | VCB4815SBO-10WR3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | ISOLATED MODULE DC DC CONVERTER1 | DC DC CONVERTER, 100W, 15V, HEAT | DC DC CONVERTER, 100W, 15V | DC DC CONVERTER 15V 10W |
| Series | ||||
| Packaging | VCB48_QBO-200WR3N (200W) | VCB48_EBO-100WFR3 (100W) | VCB48_EBO-100WR3 (100W) | VCB48_SBO-10WR3 (10W) |
