VCF4812QBO-400WR3
lmages are for reference only.VCF4812QBO-400WR3
DC DC CONVERTER, 400W, 12V
DatasheetQuarter Brick
67,777 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 33A 36V - 75V Input
VCF4812QBO-400WR3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 33A |
| Power (Watts) | 396 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote Sense |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 95% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.28" L x 1.45" W x 0.51" H (57.9mm x 36.8mm x 12.9mm) |
| Supplier Device Package | Quarter Brick |
| Control Features | - |
| Approval Agency | - |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 2.25 kV |
| Product Attribute |  |
 |
 |
 |

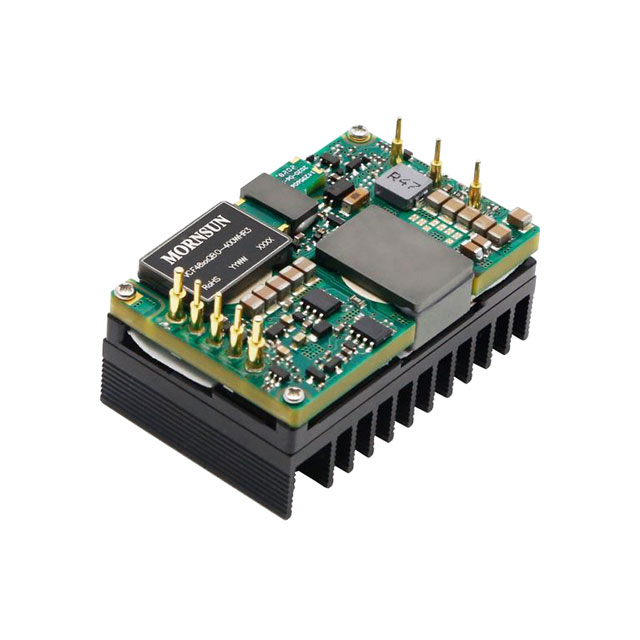

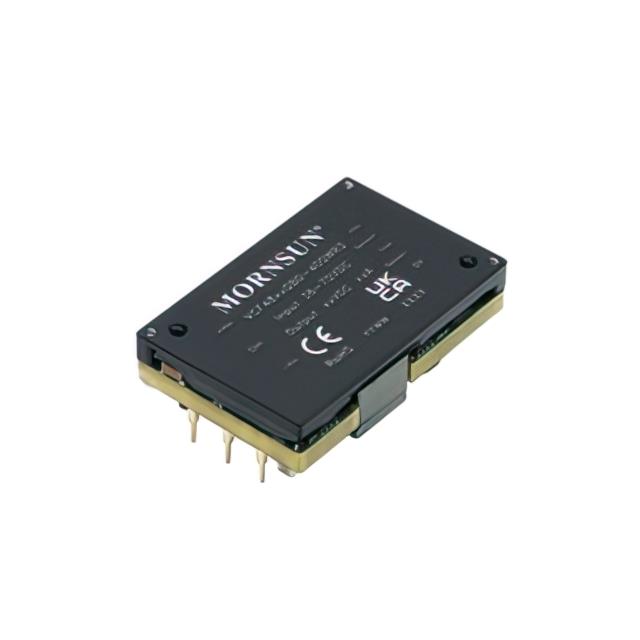

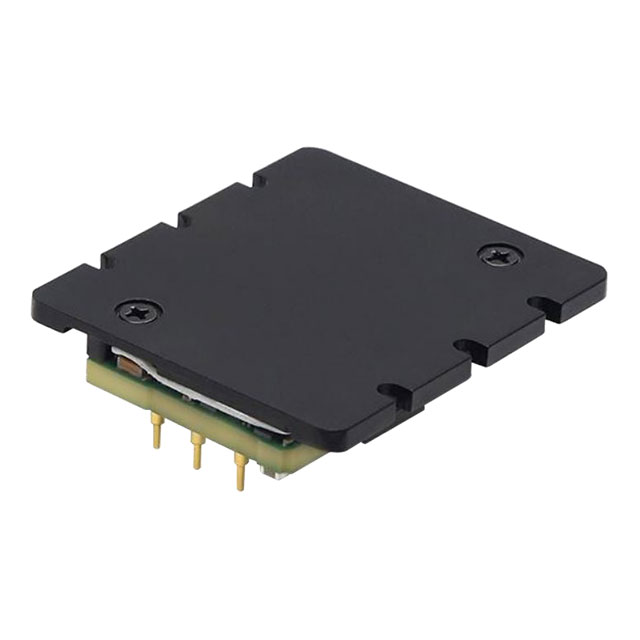

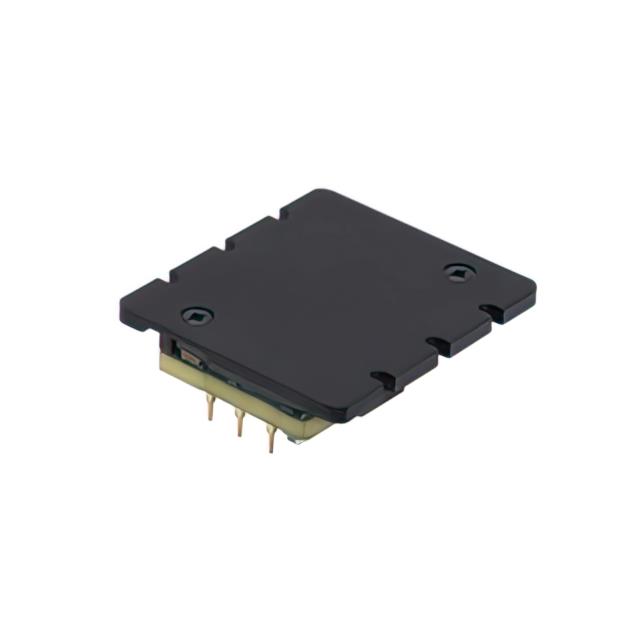

| Part Number | VCF4812QBO-400WR3-N | VCF4812QBO-400WFR3 | VCF4812QBO-400WFR3-N | VCF4812QBO-400WHR3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ISOLATED MODULE DC DC CONVERTER1 | DC DC CONVERTER, 400W, 12V, ADDE | ISOLATED MODULE DC DC CONVERTER1 | DC DC CONVERTER, 400W, 12V, HEAT |
| Series | ||||
| Packaging | VCF48_QBO-400WR3-N (400W) | VCF48_QBO-400WFR3 (400W) | VCF48_QBO-400WFR3-N (400W) | VCF48_QBO-400WHR3 (400W) |
