VCMT136E-4R7MN54M

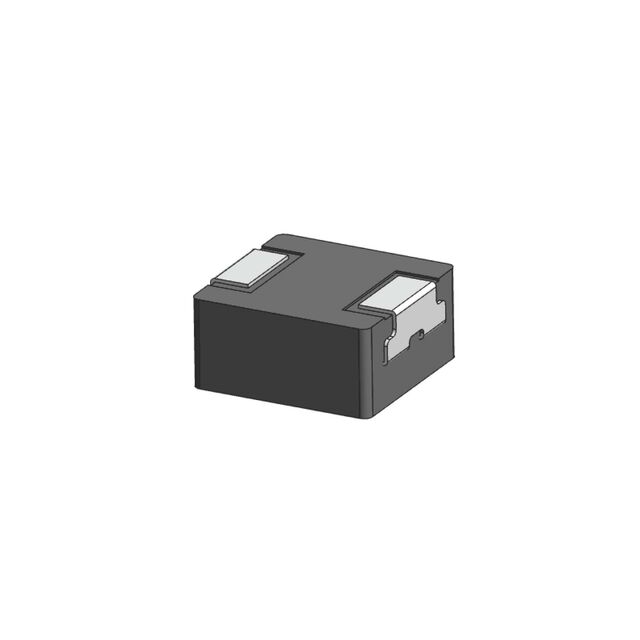

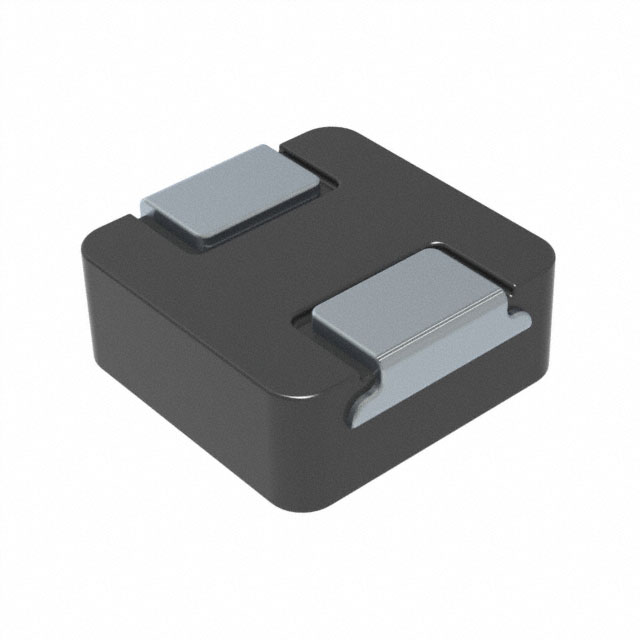

lmages are for reference only.VCMT136E-4R7MN54M
IND SMD 4.7UH AUTO GRADE CHOKE
DatasheetNonstandard
21,704 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4.7 µH Unshielded Molded Inductor 13.5 A 8.7mOhm Max Nonstandard
VCMT136E-4R7MN54M
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Delta Electronics/Cyntec |
| Series | VCMT136E |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | Molded |
| Material - Core | Metal |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 13.5 A |
| Current - Saturation (Isat) | 11.6A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 8.7mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | AEC-Q200 |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.530" L x 0.496" W (13.45mm x 12.60mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | VCMT136E-100MN5 | VCMT136E-100MN54M | VCMT136E-150MN5 | VCMT136E-150MN54M |
| Manufacturer | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | FIXED IND 10UH 11A 17.2MOHM SMD | IND SMD 10.0UH AUTO GRADE CHOKE | FIXED IND 15UH 8.5A 28.2MOHM SMD | IND SMD 15.0UH AUTO GRADE CHOKE |
| Series | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
