VEMD2023X01
lmages are for reference only.VEMD2023X01
SENSOR PHOTODIODE 940NM 2SMD
Datasheet2-SMD
33,664 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Photodiode 940nm 100ns 70° 2-SMD
VEMD2023X01
| Category | Sensors, Transducers - Optical Sensors - Photodiodes |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Wavelength | 940nm |
| Color - Enhanced | - |
| Spectral Range | 750nm ~ 1050nm |
| Diode Type | PIN |
| Responsivity @ nm | - |
| Response Time | 100ns |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Current - Dark (Typ) | 1nA |
| Active Area | 0.23mm² |
| Viewing Angle | 70° |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD |
| Base Product Number | VEMD2023 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |

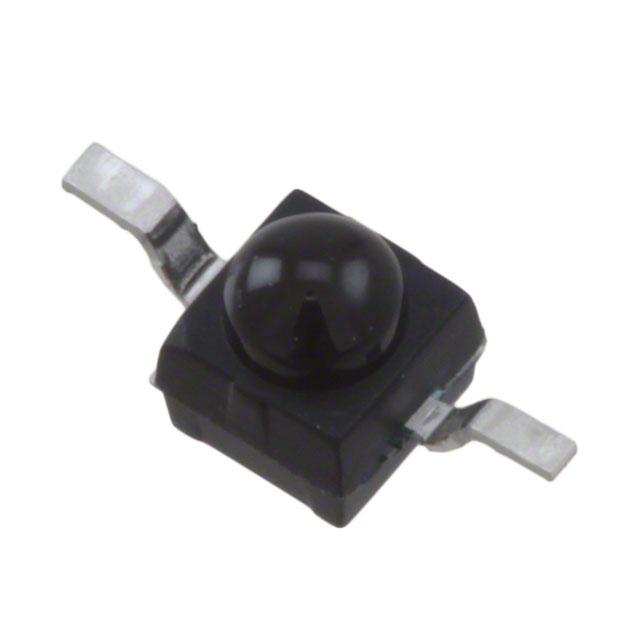

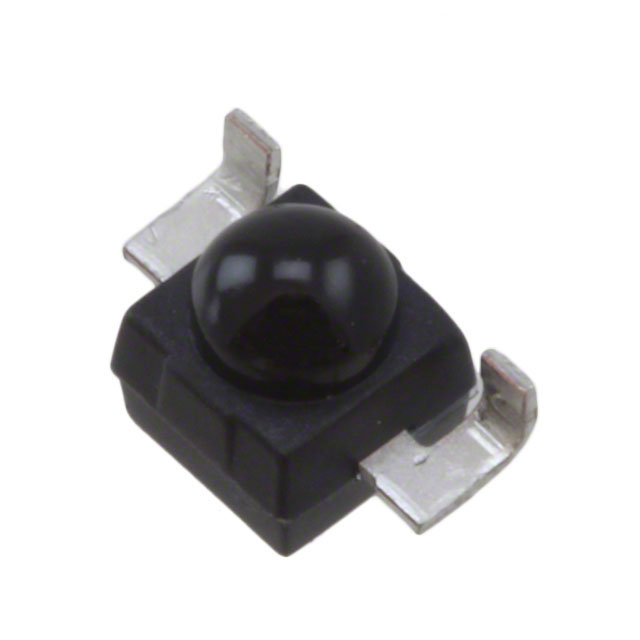

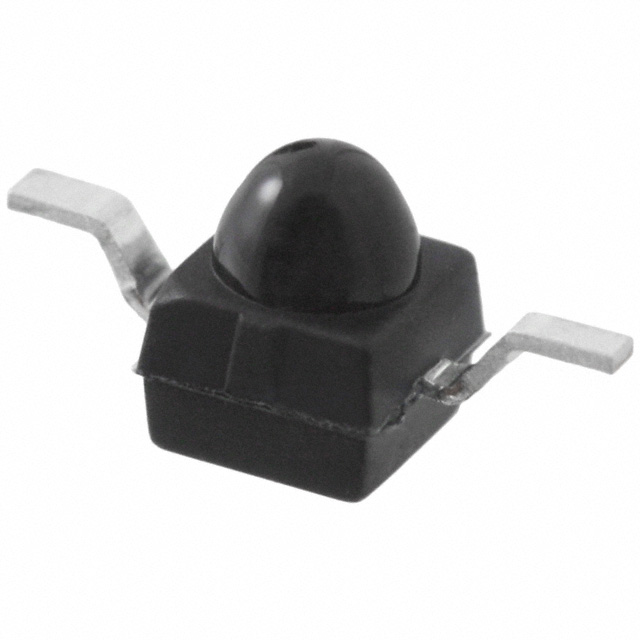

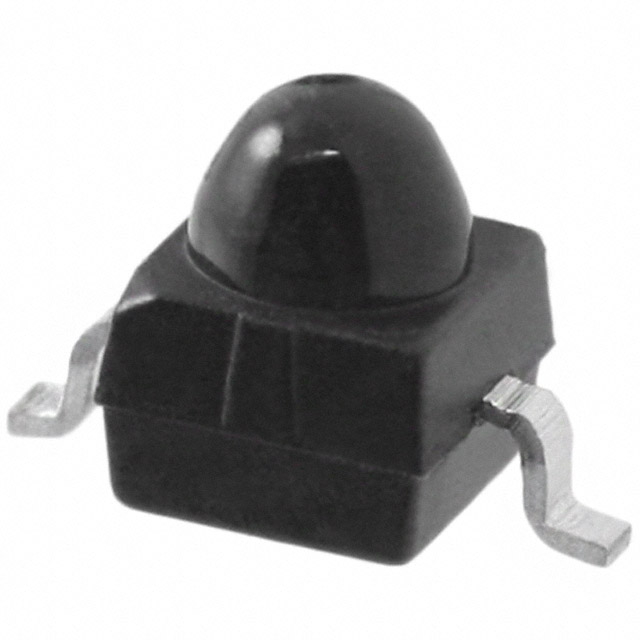

| Part Number | VEMD2023SLX01 | VEMD2000X01 | VEMD2003X01 | VEMD2020X01 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SENSOR PHOTODIODE 940NM 2SMD | SENSOR PHOTODIODE 940NM 2SMD | SENSOR PHOTODIODE 940NM 2SMD | SENSOR PHOTODIODE 940NM 2SMD GW |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
