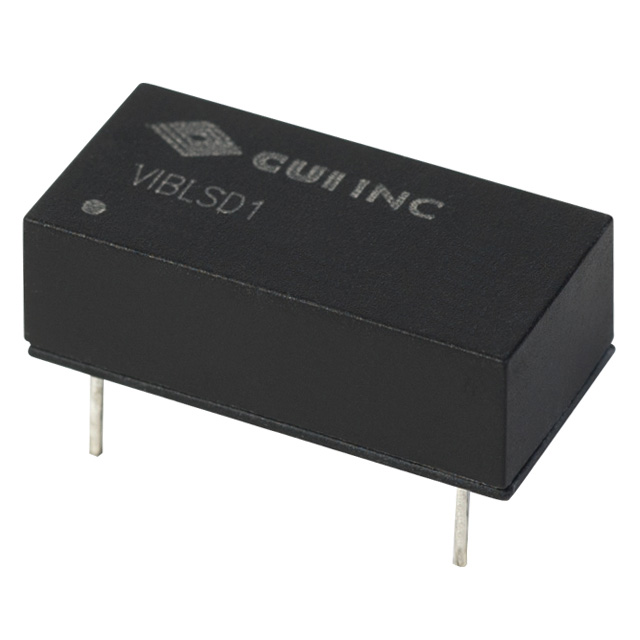

VIBLSD1-S5-S12-DIP
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 83mA 4.75V - 5.25V Input
VIBLSD1-S5-S12-DIP
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | CUI Inc. |
| Series | VIBLSD1-DIP (1W) |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.75V |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 83mA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 71% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP Module (300 mil, 5 Leads) |
| Size / Dimension | 0.80" L x 0.39" W x 0.26" H (20.4mm x 10.0mm x 6.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | VIBLSD1 |
| Voltage - Isolation | 1 kV |
| Product Attribute |  |
 |
|
 |
| Part Number | VIBLSD1-S5-S12-SIP | VIBLSD1-S5-S15-SIP | VIBLSD1-S5-S15-SIP | VIBLSD1-S5-S24-DIP |
| Manufacturer | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 12V 1W | DC DC CONVERTER 15V 1W | DC DC CONVERTER 15V 1W | DC DC CONVERTER 24V 1W |
| Series | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| Packaging | Tube | Tube | Tube | Tube |
