VIPER37LDTR
lmages are for reference only.VIPER37LDTR
IC OFFLINE SWITCH FLYBACK 16SO
Datasheet16-SOIC (0.154", 3.90mm Width)
72,293 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Converter Offline Flyback Topology 60kHz 16-SO
VIPER37LDTR
| Category | Integrated Circuits (ICs) - Power Management PMIC - AC DC Converters-Offline Switches |
| Manufacturer | STMicroelectronics |
| Series | VIPer™ plus |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 800V |
| Topology | Flyback |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 23.5V |
| Duty Cycle | 80% |
| Frequency - Switching | 60kHz |
| Power (Watts) | 20 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SO |
| Mounting Type | Surface Mount |
| Base Product Number | VIPER37 |
| Voltage - Start Up | 14 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | VIPER37LD | VIPER37LE | VIPER011LS | VIPER011LSTR |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

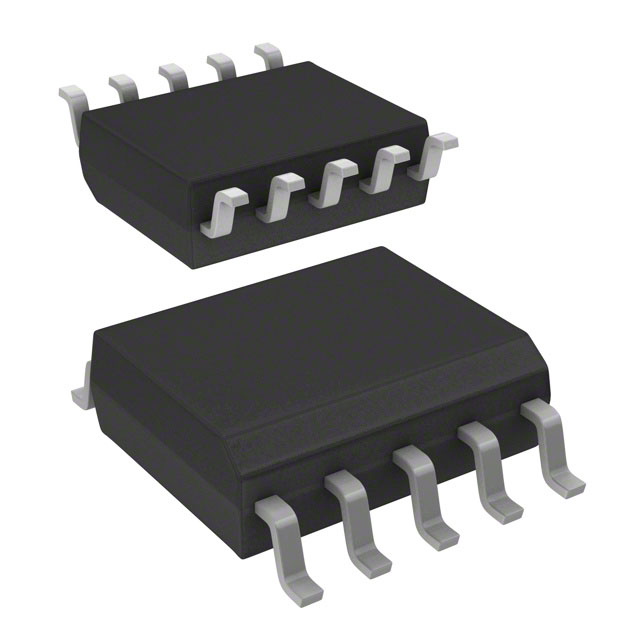

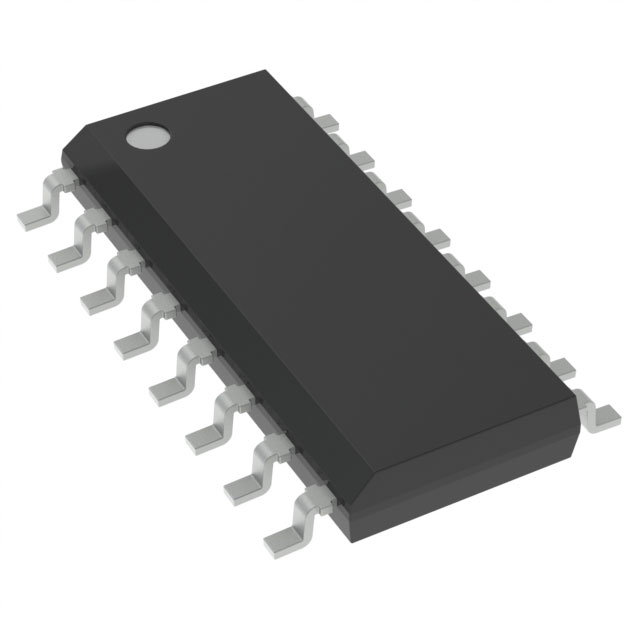

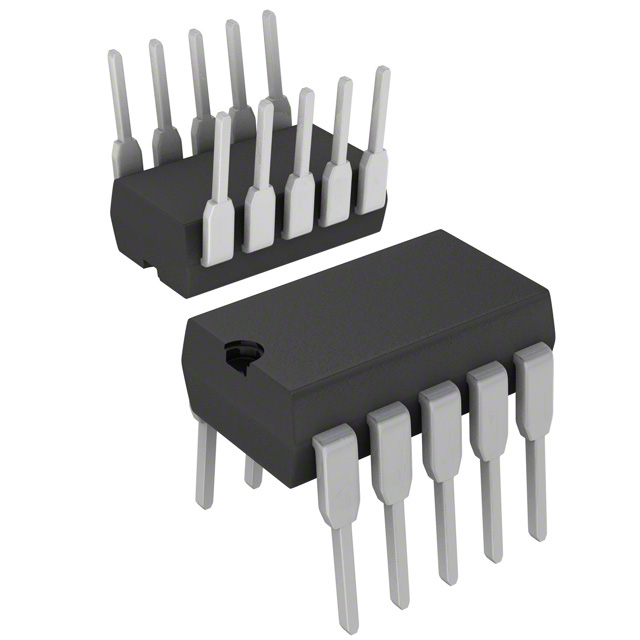

| Description | IC OFFLINE SWITCH FLYBACK 16SO | IC OFFLINE SWITCH FLYBACK 10DIP | IC OFFLINE SW MULT TOP 10SSOP | IC OFFLINE SW MULT TOP 10SSOP |
| Series | VIPer™ plus | VIPer™ plus | - | - |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
