VJ0805D681GXXAT

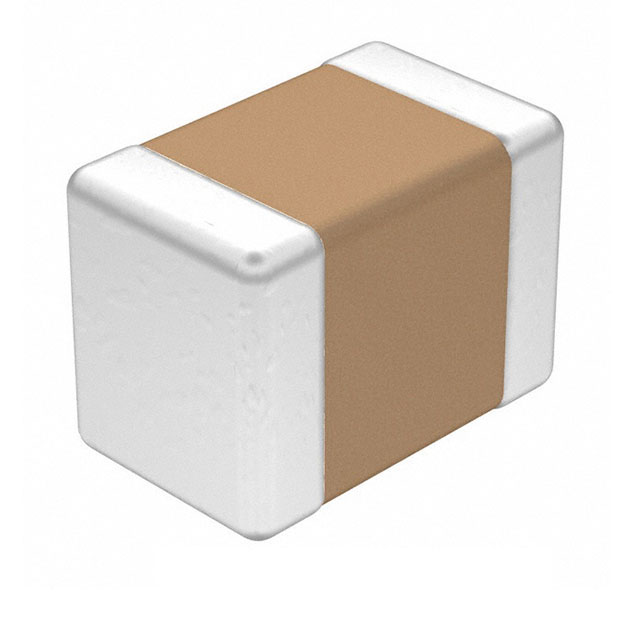

lmages are for reference only.VJ0805D681GXXAT
CAP CER 680PF 25V C0G/NP0 0805
Datasheet0805 (2012 Metric)
80,977 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
680 pF ±2% 25V Ceramic Capacitor C0G, NP0 0805 (2012 Metric)
VJ0805D681GXXAT
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Vishay Vitramon |
| Series | VJ HIFREQ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 680 pF |
| Tolerance | ±2% |
| Voltage - Rated | 25V |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Q, Low Loss |
| Ratings | - |
| Applications | RF, Microwave, High Frequency |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.057" (1.45mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | VJ0805 |
| Failure Rate | - |
| Product Attribute |  |
 |
 |
|
| Part Number | VJ0805D681GXXAJ | VJ0805D681GXXAR | VJ0805D681GXAAJ | VJ0805D681GXAAJ |
| Manufacturer | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 680PF 25V C0G/NP0 0805 | CAP CER 680PF 25V C0G/NP0 0805 | CAP CER 680PF 50V C0G/NP0 0805 | CAP CER 680PF 50V C0G/NP0 0805 |
| Series | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
