VJ1111D120JXRAJ
lmages are for reference only.VJ1111D120JXRAJ
CAP CER 12PF 1.5KV C0G/NP0 1111
Datasheet1111 (2828 Metric)
34,124 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12 pF ±5% 1500V (1.5kV) Ceramic Capacitor C0G, NP0 1111 (2828 Metric)
VJ1111D120JXRAJ
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Vishay Vitramon |
| Series | VJ QUAD HIFREQ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 12 pF |
| Tolerance | ±5% |
| Voltage - Rated | 1500V (1.5kV) |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Q, Low Loss |
| Ratings | - |
| Applications | RF, Microwave, High Frequency |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1111 (2828 Metric) |
| Size / Dimension | 0.117" L x 0.110" W (2.98mm x 2.79mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.102" (2.59mm) |
| Lead Spacing | - |
| Lead Style | - |
| Failure Rate | - |
| Base Product Number | VJ1111 |
| Product Attribute |  |
 |
 |
 |

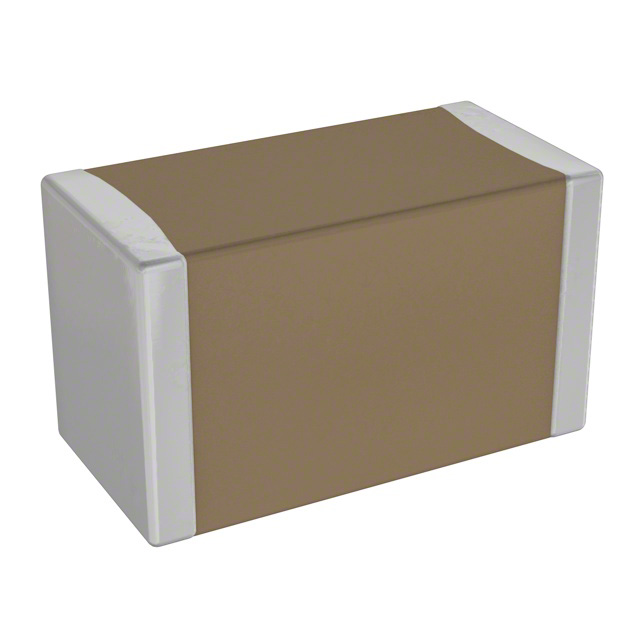

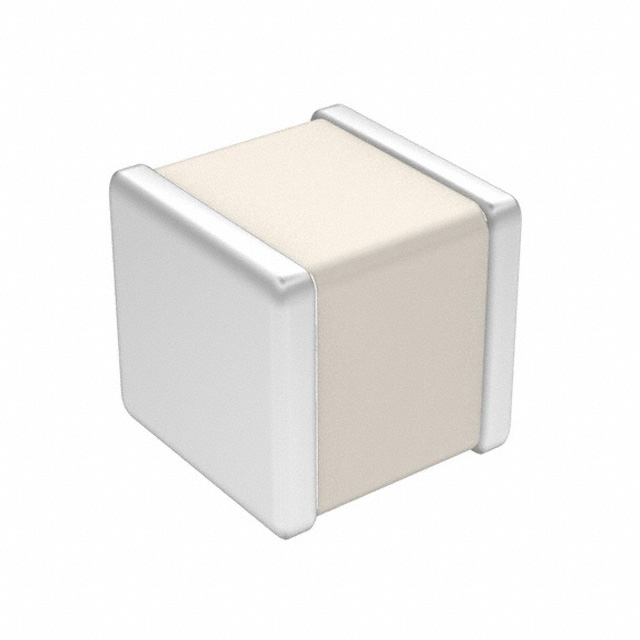

| Part Number | VJ1111D120JXEQJHT | VJ1111D120GXGAJ | VJ1111D120GXGAR | VJ1111D120GXGAT |
| Manufacturer | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon |
| RoHS Status | ROHS3 Compliant | |||
| Description | CAP CER 12PF 500V C0G/NP0 1111 | MLCC | MLCC | MLCC |
| Series | Vishay Vitramon | Vishay Vitramon | Vishay Vitramon | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
