VLDTG1232R-08
lmages are for reference only.VLDTG1232R-08
LED GREEN 2SMD BOTTOM ENT
Datasheet2-SMD, Z-Bend
76,381 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Green 525nm LED Indication - Discrete 2.9V 2-SMD, Z-Bend
VLDTG1232R-08
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | VLDTG1232 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Green |
| Configuration | - |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 16000mcd |
| Lens Style | Round with Domed Top |
| Lens Size | 1.80mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Current - Test | 20mA |
| Viewing Angle | 18° |
| Mounting Type | Surface Mount, Bottom Entry |
| Wavelength - Dominant | 525nm |
| Wavelength - Peak | 519nm |
| Features | - |
| Package / Case | 2-SMD, Z-Bend |
| Supplier Device Package | 2-SMD |
| Size / Dimension | 2.30mm L x 2.30mm W |
| Height (Max) | 2.97mm |
| Base Product Number | VLDTG1232 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

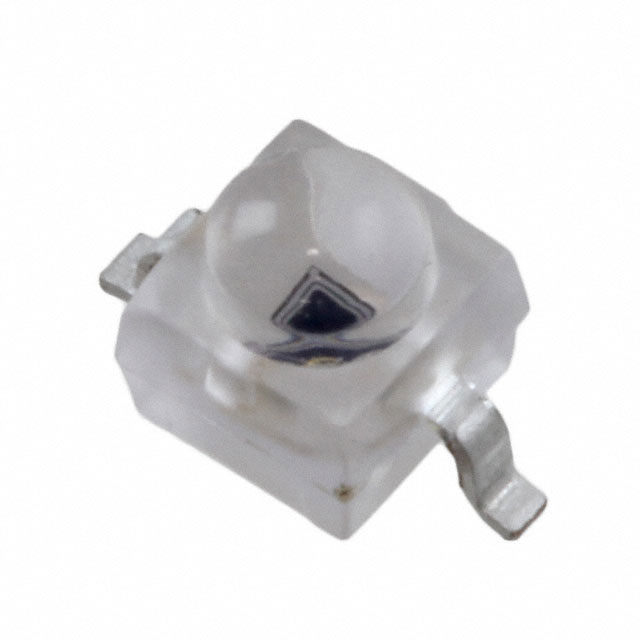

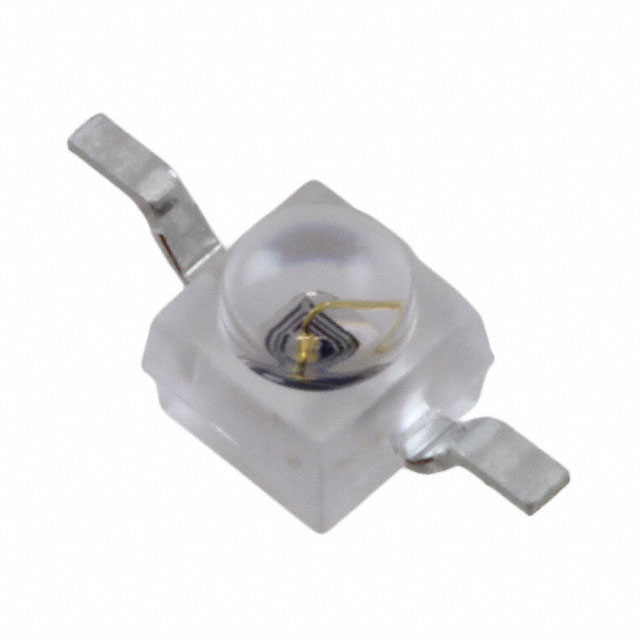

| Part Number | VLDTG1232G-08 | VLDTG1232RG-08 | VLDB1232G-08 | VLDB1232R-08 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GREEN DOME LENS 2SMD | LED TRUE GREEN 2SMD | LED BLUE DOME LENS 2SMD | LED BLUE 2SMD BOTTOM ENT |
| Series | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
