Product CatalogPart Number
VLF403210MT-4R7M
Manufacturer
TDK CorporationDescription
FIXED IND 4.7UH 1.61A 140MOHM SM
Datasheet
DatasheetPackage
Nonstandard
In Stock
64,510 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
VLF403210MT-4R7M
VLF403210MT-4R7M
lmages are for reference only.Payment Methods
Delivery Services
4.7 µH Shielded Drum Core, Wirewound Inductor 1.61 A 140mOhm Max Nonstandard
Quick Inquiry
VLF403210MT-4R7M
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | TDK Corporation |
| Series | VLF-M |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.61 A |
| Current - Saturation (Isat) | 1.09A |
| Shielding | Shielded |
| DC Resistance (DCR) | 140mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 105°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

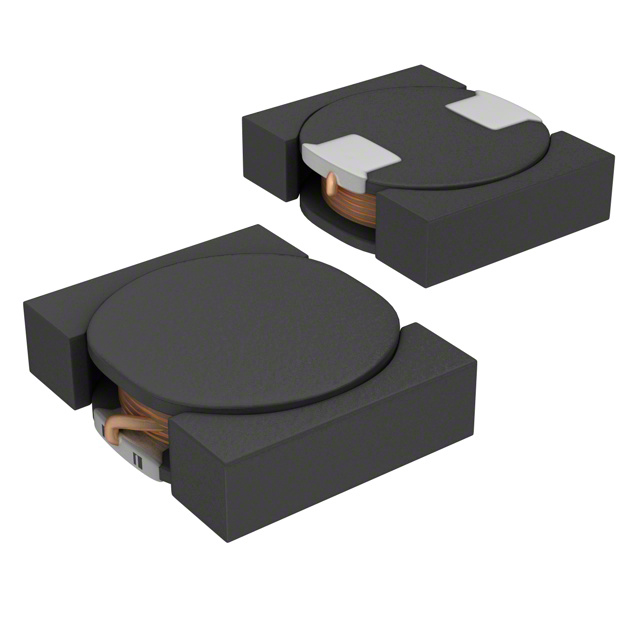

| Part Number | VLF403210MT-4R7M-CA | VLF403210MT-100M | VLF403210MT-100M-CA | VLF403210MT-100M-CA |
| Manufacturer | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| RoHS Status | ||||
| Description | FIXED IND 4.7UH 1.61A 140MOHM SM | FIXED IND 10UH 1.04A 310MOHM SMD | FIXED IND 10UH 1.04A 310MOHM SMD | FIXED IND 10UH 1.04A 310MOHM SMD |
| Series | TDK Corporation | TDK Corporation | TDK Corporation | TDK Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
VLF4010AT-100MR64
TDK Corporation
VLF4010AT-6R8MR81
TDK Corporation
VLF4010ST-100MR80
TDK Corporation
VLF4010ST-1R0N1R9
TDK Corporation

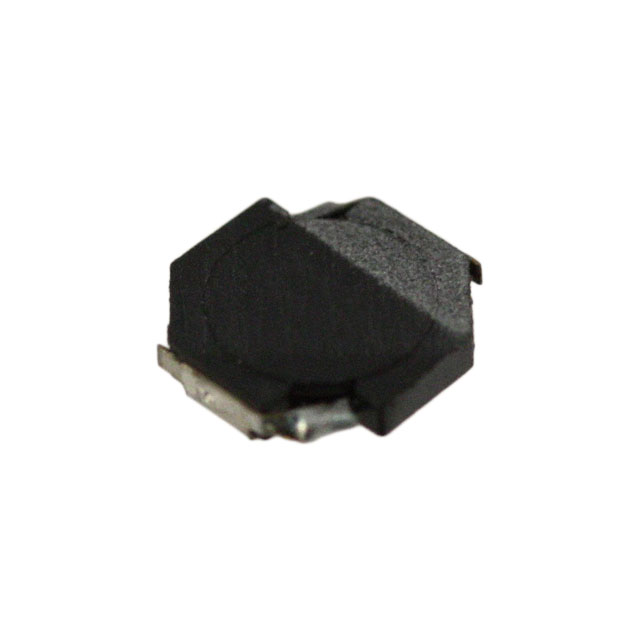

VLF4010ST-2R2M1R4
TDK Corporation
VLF4010ST-3R3M1R2
TDK Corporation
VLF4010ST-4R7M1R0
TDK Corporation
VLF4010ST-4R7M1R0
TDK Corporation
VLF4010ST-6R8MR85
TDK Corporation
VLF4012AT-100MR79
TDK Corporation
VLF4012AT-150MR63
TDK Corporation
VLF4012AT-150MR63
TDK Corporation

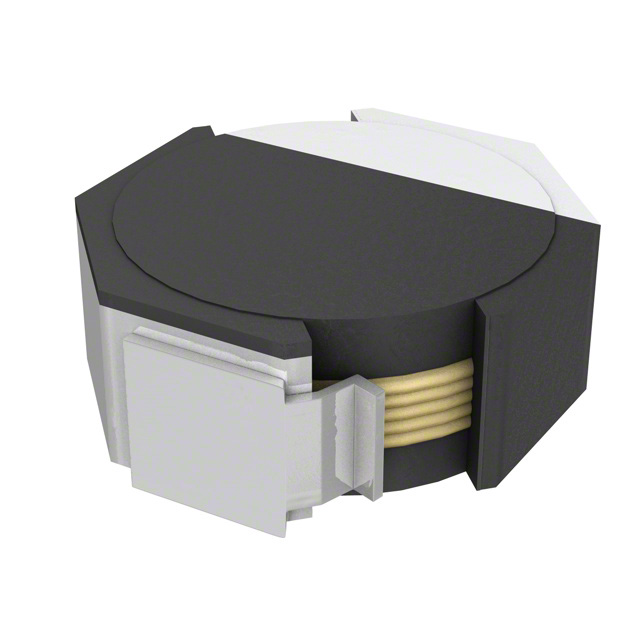

VLF4012AT-1R5M1R6
