VLIN26A1-03G-E3-18
lmages are for reference only.VLIN26A1-03G-E3-18
TVS DIODE 26.5VWM 50VC SOT323
DatasheetSC-70, SOT-323
60,294 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
50V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount SOT-323
VLIN26A1-03G-E3-18
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 26.5V (Max) |
| Voltage - Breakdown (Min) | 28V |
| Voltage - Clamping (Max) @ Ipp | 50V |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) |
| Power - Peak Pulse | 150W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 10pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-70, SOT-323 |
| Supplier Device Package | SOT-323 |
| Base Product Number | VLIN26 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |

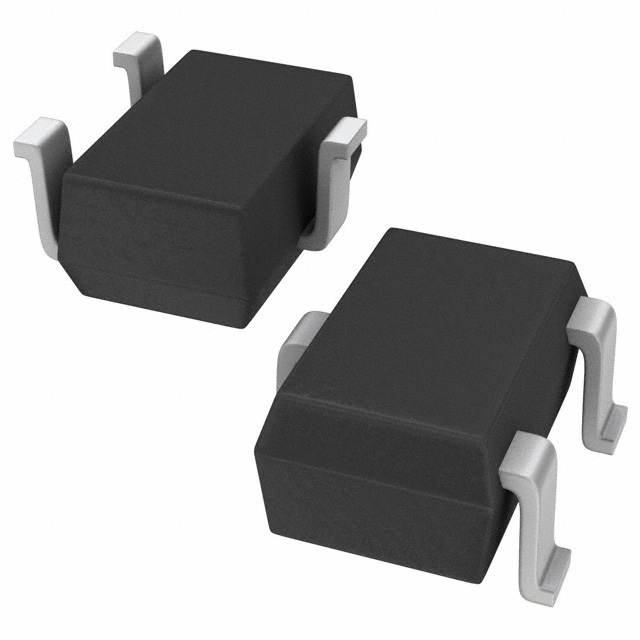

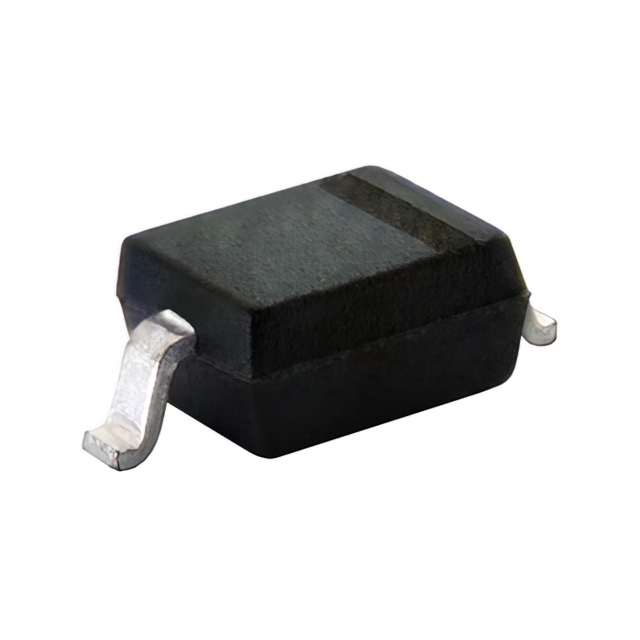

| Part Number | VLIN26A1-03G-E3-08 | VLIN26A1-03GHE3-08 | VLIN26A1-03GHE3-18 | VLIN1616-02G-E3-08 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 26.5VWM 50VC SOT323 | TVS DIODE 26.5VWM 50VC SOT323 | TVS DIODE 26.5VWM 50VC SOT323 | TVS DIODE 16VWM 33VC SOD323 |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
