VLMKE3401-GS08
lmages are for reference only.VLMKE3401-GS08
LED RED/YLW CLEAR 4PLCC SMD
Datasheet4-SMD, J-Lead
41,646 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red, Yellow 630nm Red, 588nm Yellow LED Indication - Discrete 1.9V Red, 2V Yellow 4-SMD, J-Lead
VLMKE3401-GS08
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | VLM.3 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Yellow |
| Configuration | Independent |
| Lens Color | - |
| Lens Transparency | Clear |
| Millicandela Rating | 106mcd Red, 168mcd Yellow |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 1.9V Red, 2V Yellow |
| Current - Test | 20mA Red, 20mA Yellow |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 630nm Red, 588nm Yellow |
| Wavelength - Peak | 643nm Red, 590nm Yellow |
| Features | - |
| Package / Case | 4-SMD, J-Lead |
| Supplier Device Package | 4-PLCC |
| Size / Dimension | 3.00mm L x 2.80mm W |
| Height (Max) | 1.85mm |
| Base Product Number | VLMKE3401 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

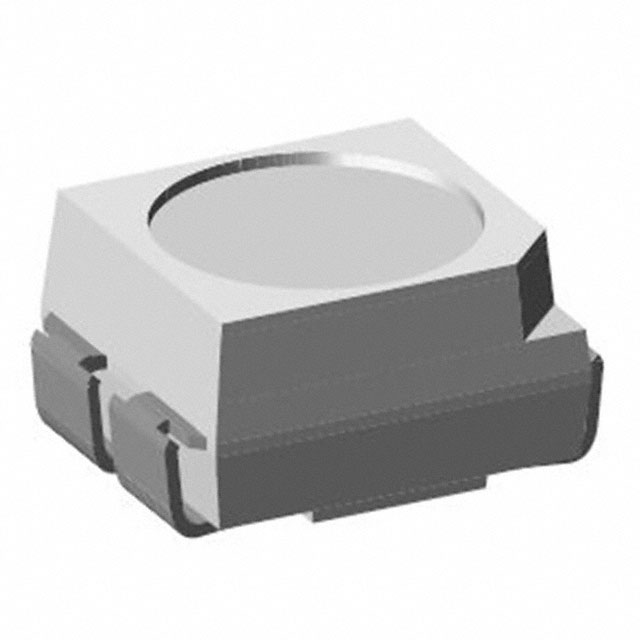

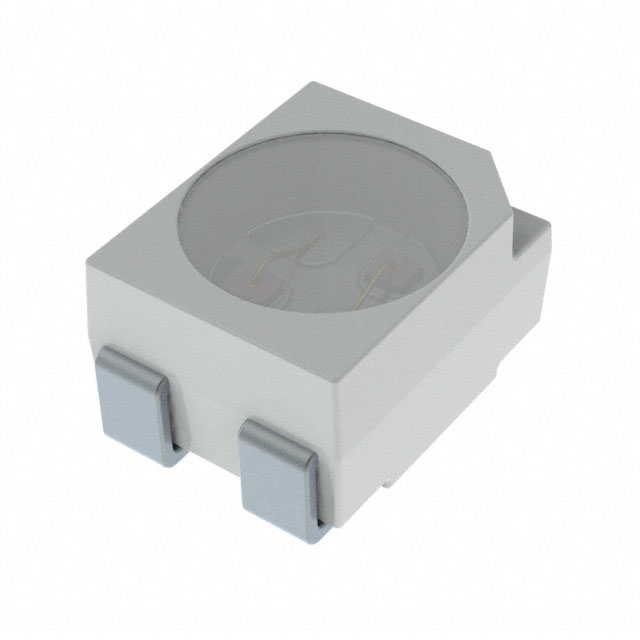

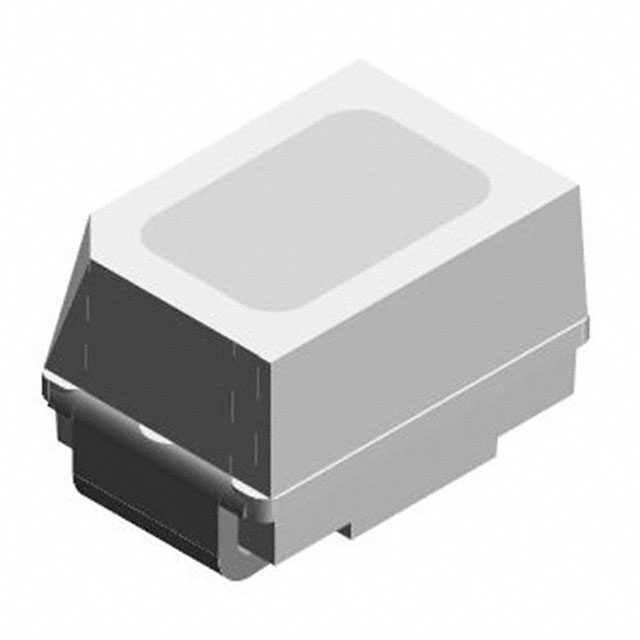

| Part Number | VLMKE3400-GS08 | VLMKE3400-GS18 | VLMKE3401-GS18 | VLMK20J2L1-GS08 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RED/YLW CLEAR 4PLCC SMD | LED RED/YLW CLEAR 4PLCC SMD | LED RED/YLW CLEAR 4PLCC SMD | LED AMBER CLEAR SMD MINILED SMD |
| Series | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
