VN131CM

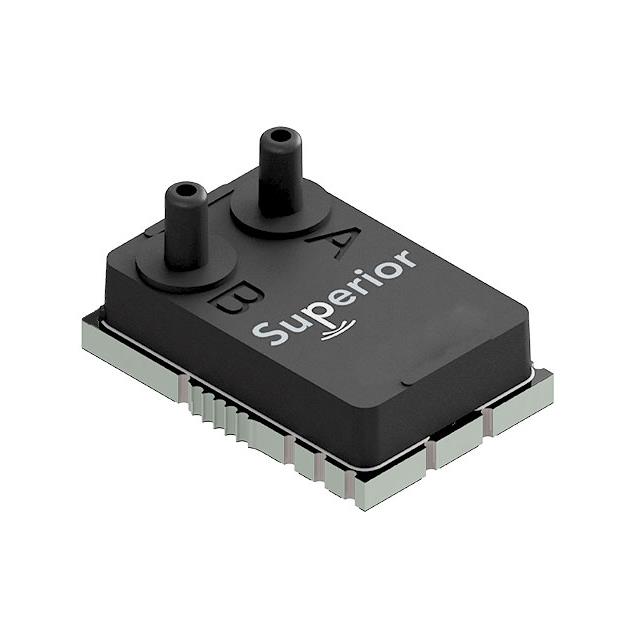

lmages are for reference only.VN131CM
DIFF PRESSURE +/-60 TO 130CM
Datasheet11-SMD, No Lead, Top Port
93,673 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pressure Sensor ±1.14PSI ~ ±1.85PSI (±7.85kPa ~ ±12.75kPa) Male - 0.08" (2.13mm) Tube, Dual 24 b 11-SMD, No Lead, Top Port
VN131CM
| Category | Sensors, Transducers - Pressure Sensors-Transducers - |
| Manufacturer | Superior Sensor Technology, Inc. |
| Series | VN |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Applications | Board Mount |
| Pressure Type | - |
| Operating Pressure | ±1.14PSI ~ ±1.85PSI (±7.85kPa ~ ±12.75kPa) |
| Output Type | I2C, SPI |
| Output | 24 b |
| Accuracy | ±0.05% |
| Voltage - Supply | 2.8V ~ 3.5V |
| Port Size | Male - 0.08" (2.13mm) Tube, Dual |
| Port Style | Barbless |
| Features | Temperature Compensated |
| Termination Style | SMD (SMT) Tab |
| Maximum Pressure | 14.22PSI (98.07kPa) |
| Operating Temperature | -20°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 11-SMD, No Lead, Top Port |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | VN130CM | VN150D | VN150A | VN026CM |
| Manufacturer | Superior Sensor Technology, Inc. | Superior Sensor Technology, Inc. | Superior Sensor Technology, Inc. | Superior Sensor Technology, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIFF PRESSURE +/-80 TO 130CM | ABS PRESSURE +/-80 TO 150 PSI | ABS PRESSURE 80 TO 150 PSI | DIFF PRESSURE +/-2.5 TO 25CM |
| Series | VN | VN | VN | VN |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
