VOH260A-X001

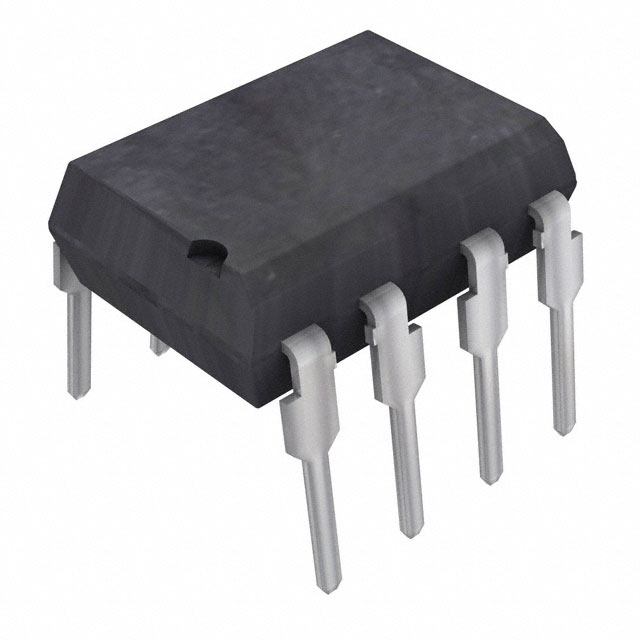

lmages are for reference only.VOH260A-X001
10 MBD OPTOCOUPLER - SINGLE CHAN
Datasheet8-DIP (0.300", 7.62mm)
66,594 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Logic Output Optoisolator 10MBd Open Drain 5000Vrms 1 Channel 15kV/µs CMTI 8-DIP
VOH260A-X001
| Category | Isolators - Optoisolators - Logic Output Optoisolators |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Input Type | Logic |
| Output Type | Open Drain |
| Current - Output / Channel | 50 mA |
| Data Rate | 10MBd |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Rise / Fall Time (Typ) | 23ns, 10ns |
| Voltage - Forward (Vf) (Typ) | 1.38V |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 2.7V ~ 3.6V, 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | VOH260A-X001 | VOH260A-X006 | VOH260A-X006 | VOH260A-X007T |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 10 MBD OPTOCOUPLER - SINGLE CHAN | 10 MBD OPTOCOUPLER - SINGLE CHAN | 10 MBD OPTOCOUPLER - SINGLE CHAN | 10 MBD OPTOCOUPLER - SINGLE CHAN |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
