VOL3120T
lmages are for reference only.VOL3120T
OPTOISO 5.3KV 1CH GATE DVR 5LSOP
Datasheet6-SOIC (0.295", 7.50mm Width), 5 Leads
18,040 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services

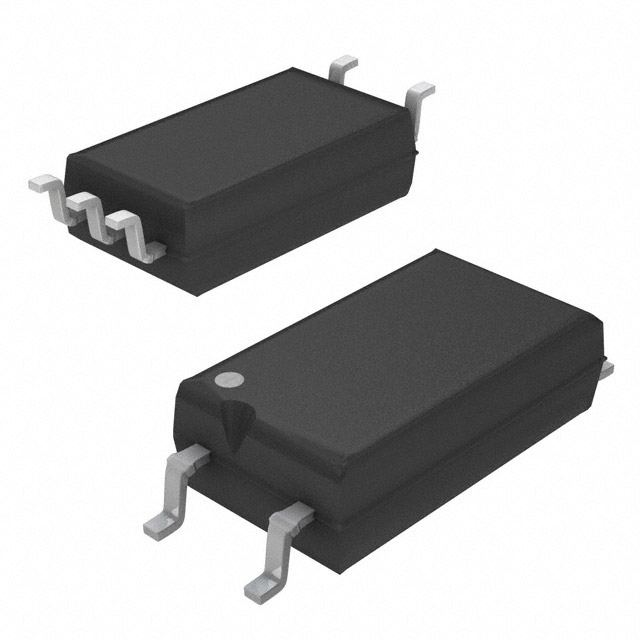

2.5A Gate Driver Optical Coupling 5300Vrms 1 Channel 5-LSOP
VOL3120T
| Category | Isolators - Isolators Gate Drivers - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5300Vrms |
| Common Mode Transient Immunity (Min) | 48kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns |
| Pulse Width Distortion (Max) | 300ns |
| Rise / Fall Time (Typ) | 100ns, 100ns |
| Current - Output High, Low | 2.5A, 2.5A |
| Current - Peak Output | 2.5A |
| Voltage - Forward (Vf) (Typ) | 1.36V |
| Voltage - Output Supply | 15V ~ 32V |
| Grade | - |
| Qualification | - |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.295", 7.50mm Width), 5 Leads |
| Supplier Device Package | 5-LSOP |
| Approval Agency | CQC, cUR, UR |
| Base Product Number | VOL3120 |
| Current - DC Forward (If) (Max) | 25 mA |
| Product Attribute |  |
 |
 |
 |
| Part Number | VOL3120-X001T | VO3120 | VO3120-X001 | VO3120-X007T |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

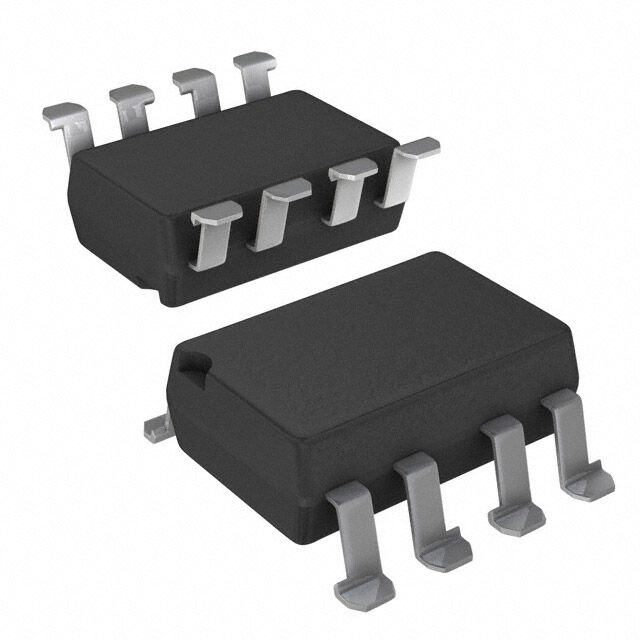

| Description | OPTOISO 5.3KV 1CH GATE DVR 5LSOP | OPTOISO 5.3KV 1CH GATE DVR 8DIP | OPTOISO 5.3KV 1CH GATE DVR 8DIP | OPTOISO 5.3KV 1CH GATE DVR 8SMD |
| Series | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| Packaging | Tape & Reel (TR) | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
