VOMA617A-3X001T

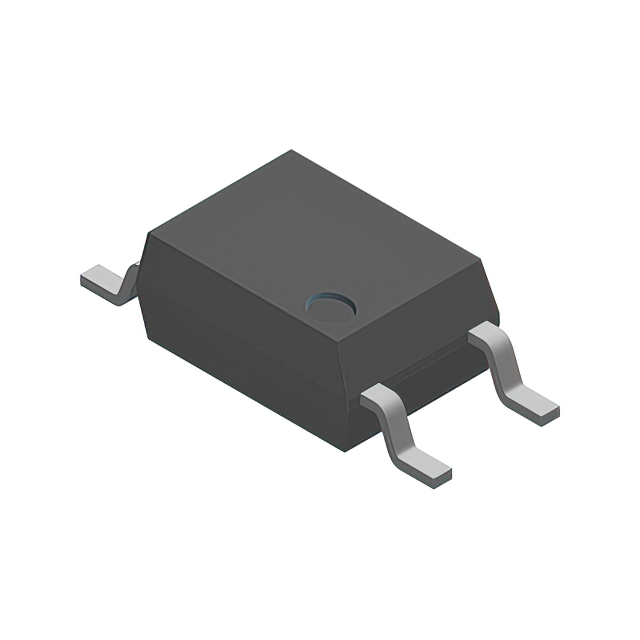

lmages are for reference only.VOMA617A-3X001T
SINGLE CHANNEL, 80V, SOP-4 PHOTO
Datasheet4-SMD, Gull Wing
80,037 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Transistor Output 3750Vrms 1 Channel 4-SOP
VOMA617A-3X001T
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | VOMA617A |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 100% @ 5mA |
| Current Transfer Ratio (Max) | 200% @ 5mA |
| Turn On / Turn Off Time (Typ) | 4.9µs, 3.3µs |
| Rise / Fall Time (Typ) | 2.3µs, 3.2µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 80V |
| Current - Output / Channel | 50mA |
| Voltage - Forward (Vf) (Typ) | 1.33V |
| Current - DC Forward (If) (Max) | 20 mA |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SOP |
| Base Product Number | VOMA617 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | VOMA617A-4X001T | VOMA617A-8X001T | VOMA617A-X001T | VOMA618A-2X001T |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | OPTOCOUPLER, PHOTOTRANSISTOR OUT | OPTOCOUPLER, PHOTOTRANSISTOR OUT | SINGLE CHANNEL, 80V, SOP-4 PHOTO | OPTOCOUPLER-PHOTO-TRANSISTOR DET |
| Series | - | - | VOMA617A | VOMA618A |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
