VOT8125AB-V

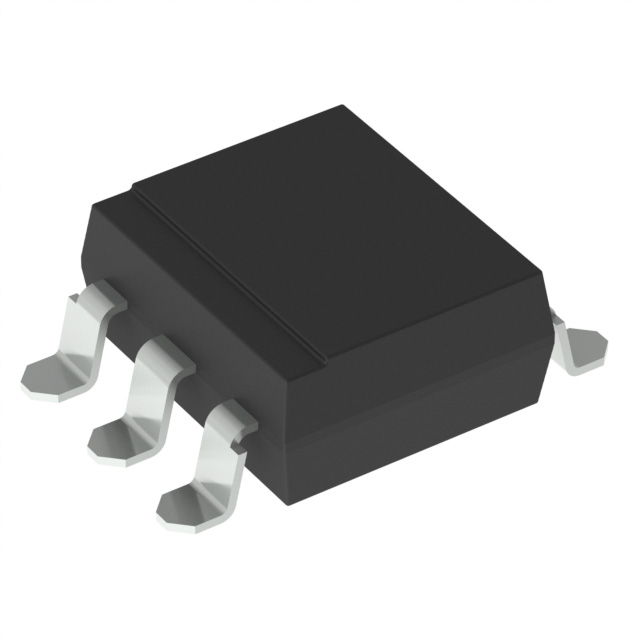

lmages are for reference only.VOT8125AB-V
OPTOCOUPLER PHOTOTRIAC 800V SMD5
Datasheet6-SMD (5 Leads), Gull Wing
65,985 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Triac Output 5000Vrms 1 Channel 6-SMD
VOT8125AB-V
| Category | Isolators - Optoisolators - Triac-SCR Output Optoisolators |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Voltage - Off State | 800 V |
| Static dV/dt (Min) | 1kV/µs |
| Current - LED Trigger (Ift) (Max) | 5mA |
| Current - Hold (Ih) | 400µA (Typ) |
| Turn On Time | - |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD (5 Leads), Gull Wing |
| Supplier Device Package | 6-SMD |
| Approval Agency | CQC, cUL, UL, VDE |
| Base Product Number | VOT8125 |
| Current - On State (It (RMS)) (Max) | 100 mA |
| Product Attribute |  |
 |
 |
 |
| Part Number | VOT8125AB-T | VOT8125AB-T2 | VOT8125AB-VT | VOT8125AB-VT2 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOCOUPLER 800V SMD-6 | OPTOCOUPLER 800V SMD-6 | OPTOCOUPLER 800V SMD-6 | OPTOCOUPLER 800V SMD-6 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
