VPDP102W102K1GV001E

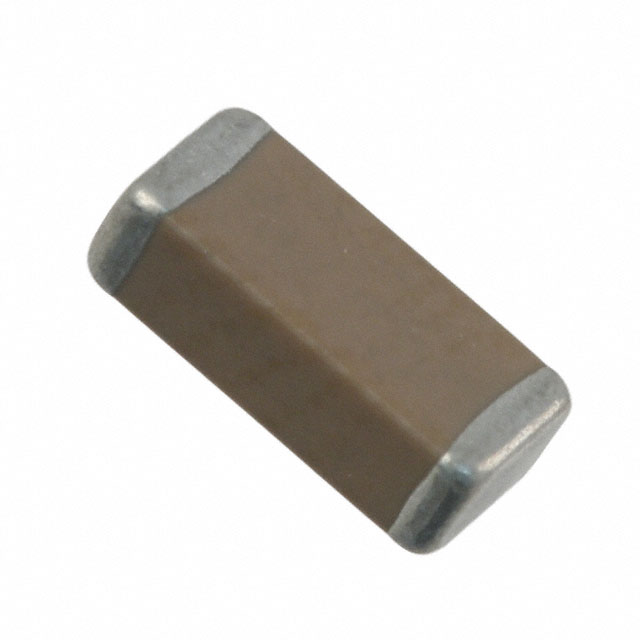

lmages are for reference only.VPDP102W102K1GV001E
CAP CER 1000PF 1KV X7R 1808
Datasheet1808 (4520 Metric)
38,169 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1000 pF ±10% 1000V (1kV) Ceramic Capacitor X7R 1808 (4520 Metric)
VPDP102W102K1GV001E
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Johanson Dielectrics Inc. |
| Series | HVS-PME |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1000 pF |
| Tolerance | ±10% |
| Voltage - Rated | 1000V (1kV) |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Voltage |
| Ratings | - |
| Applications | SMPS Filtering |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1808 (4520 Metric) |
| Size / Dimension | 0.185" L x 0.080" W (4.70mm x 2.03mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.085" (2.16mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | VPDP102 |
| Product Attribute |  |
 |
 |
|
| Part Number | VPDP102W103K1GV001E | VPDP102W183K1GV001E | VPDP102G470K1GV001E | VPDP102G470K1GV001E |
| Manufacturer | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 10000PF 1KV X7R 1808 | CAP CER 0.018UF 1KV X7R 1808 | CAP CER 47PF 1KV C0G/NP0 1808 | CAP CER 47PF 1KV C0G/NP0 1808 |
| Series | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
