VPDR102W102K1GV001E
lmages are for reference only.VPDR102W102K1GV001E
CAP CER 1000PF 1KV X7R 1812
Datasheet1812 (4532 Metric)
31,166 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1000 pF ±10% 1000V (1kV) Ceramic Capacitor X7R 1812 (4532 Metric)
VPDR102W102K1GV001E
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Johanson Dielectrics Inc. |
| Series | HVS-PME |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 1000 pF |
| Tolerance | ±10% |
| Voltage - Rated | 1000V (1kV) |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Voltage |
| Ratings | - |
| Applications | SMPS Filtering |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension | 0.177" L x 0.125" W (4.50mm x 3.18mm) |
| Thickness (Max) | 0.110" (2.80mm) |
| Lead Spacing | - |
| Lead Style | - |
| Height - Seated (Max) | - |
| Base Product Number | VPDR102 |
| Product Attribute |  |
 |
 |
 |

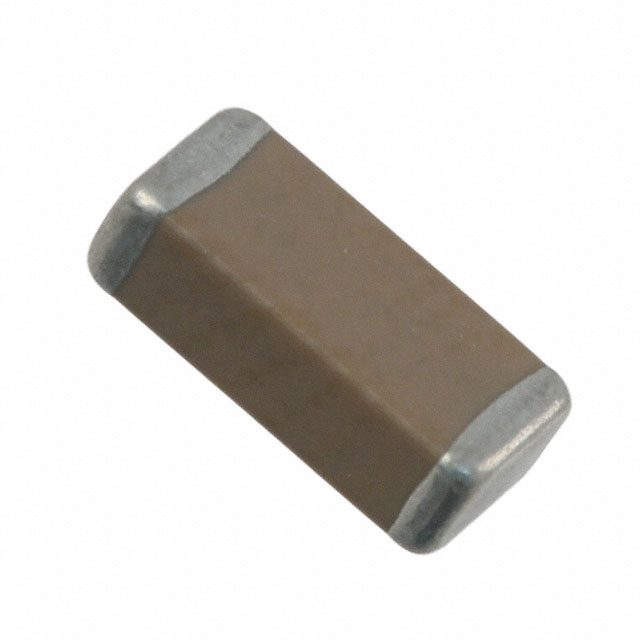

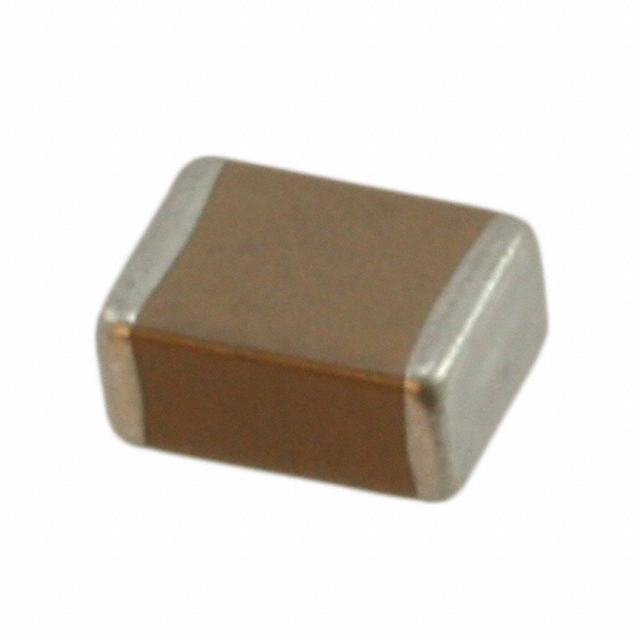

| Part Number | VPDR102W103K1GF001E | VPDR102W103M1GV001E | VPDR102W473K1GV001E | VPDR102W563K1GV001E |
| Manufacturer | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 10000PF 1KV X7R 1812 | CAP CER 10000PF 1KV X7R 1812 | CAP CER 0.047UF 1KV X7R 1812 | CAP CER 0.056UF 1KV X7R 1812 |
| Series | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
