VPEH102W104K1GF001E

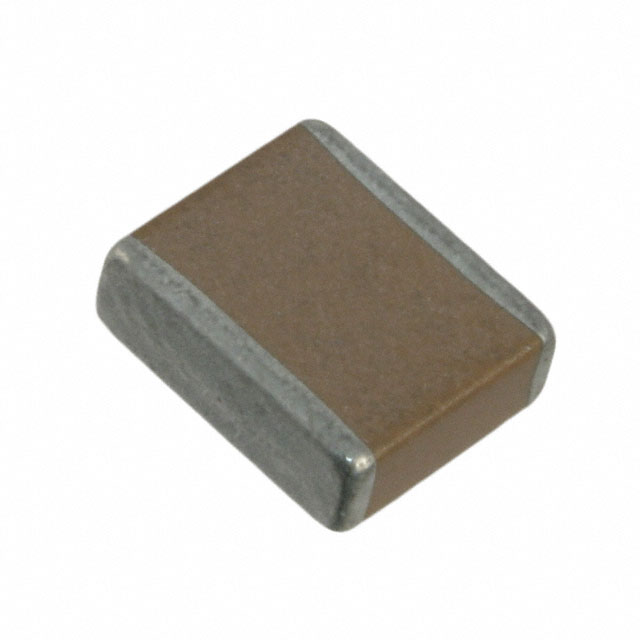

lmages are for reference only.VPEH102W104K1GF001E
CAP CER 0.1UF 1KV X7R 2225
Datasheet2225 (5763 Metric)
17,530 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.1 µF ±10% 1000V (1kV) Ceramic Capacitor X7R 2225 (5763 Metric)
VPEH102W104K1GF001E
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Johanson Dielectrics Inc. |
| Series | PolyTerm®, HVS-PME |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.1 µF |
| Tolerance | ±10% |
| Voltage - Rated | 1000V (1kV) |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Features | Soft Termination, High Voltage |
| Ratings | - |
| Applications | SMPS Filtering, Boardflex Sensitive |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 2225 (5763 Metric) |
| Size / Dimension | 0.225" L x 0.255" W (5.72mm x 6.48mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.160" (4.06mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | VPEH102 |
| Product Attribute |  |
 |
 |
 |
| Part Number | VPEH102W104K1GV001E | VPEH202W103K1GF001E | VPEH202W103K1GV001E | VPEH202W104K1GF001E |
| Manufacturer | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 0.1UF 1KV X7R 2225 | CAP CER 10000PF 2KV X7R 2225 | CAP CER 10000PF 2KV X7R 2225 | CAP CER 0.1UF 2KV X7R 2225 |
| Series | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | Johanson Dielectrics Inc. | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Bulk |
