VS-10CDH06HM3/I
lmages are for reference only.VS-10CDH06HM3/I
DIODE ARRAY GP 600V 5A TO263AC
DatasheetTO-263-3, D2PAK (2 Leads + Tab), Variant
68,055 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode Array 1 Pair Common Cathode 600 V 5A Surface Mount TO-263-3, D2PAK (2 Leads + Tab), Variant
VS-10CDH06HM3/I
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | FRED Pt® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) (per Diode) | 5A |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 3 µA @ 600 V |
| Operating Temperature - Junction | 175°C (Max) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), Variant |
| Supplier Device Package | TO-263AC (SMPD) |
| Base Product Number | 10CDH06 |
| Reverse Recovery Time (trr) | 35 ns |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute | |
 |
|
 |

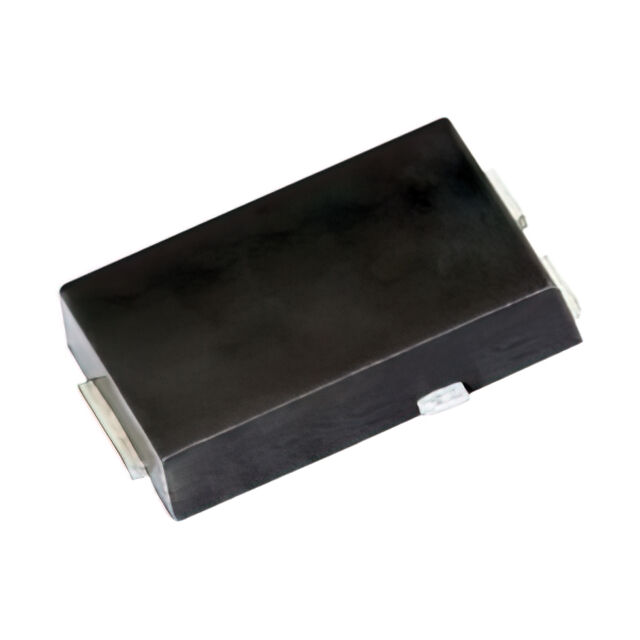

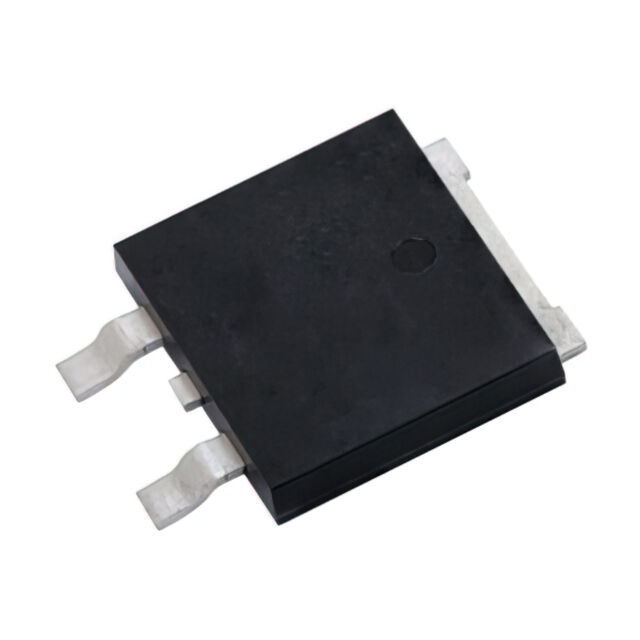

| Part Number | VS-10CDH06-M3/I | VS-10CDU06-M3/I | VS-10CDU06HM3/I | VS-10CSH01-M3/86A |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE ARRAY GP 600V 5A TO263AC | DIODE ARRAY GP 600V 5A TO263AC | DIODE ARRAY GP 600V 5A TO263AC | DIODE ARRAY GP 100V 5A TO277A |
| Series | FRED Pt® | FRED Pt® | FRED Pt® | FRED Pt® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
