VS-60CPU03W-N3

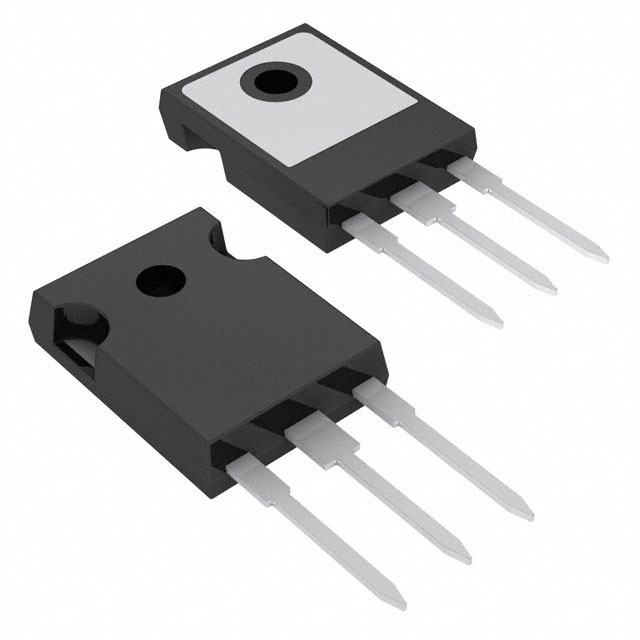

lmages are for reference only.VS-60CPU03W-N3
DIODE ARRAY GP 300V 30A TO-247AC
DatasheetTO-247-3
12,095 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode Array 1 Pair Common Cathode 300 V 30A Through Hole TO-247-3
VS-60CPU03W-N3
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | FRED Pt® |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 300 V |
| Current - Average Rectified (Io) (per Diode) | 30A |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 30 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 5 µA @ 300 V |
| Operating Temperature - Junction | -40°C ~ 175°C |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247AC |
| Base Product Number | 60CPU03 |
| Reverse Recovery Time (trr) | 50 ns |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | VS-60CPU02-F | VS-60CPU02-N3 | VS-60CPU04-F3 | VS-60CPU04-N3 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE ARRAY GP 200V 30A TO-247AC | DIODE ARRAY GP 200V 30A TO-247AC | DIODE ARRAY GP 400V 30A TO-247AC | DIODE ARRAY GP 400V 30A TO-247AC |
| Series | FRED Pt® | FRED Pt® | FRED Pt® | FRED Pt® |
| Packaging | Tube | Tube | Tube | Tube |
