VS-6ESH06HM3/87A

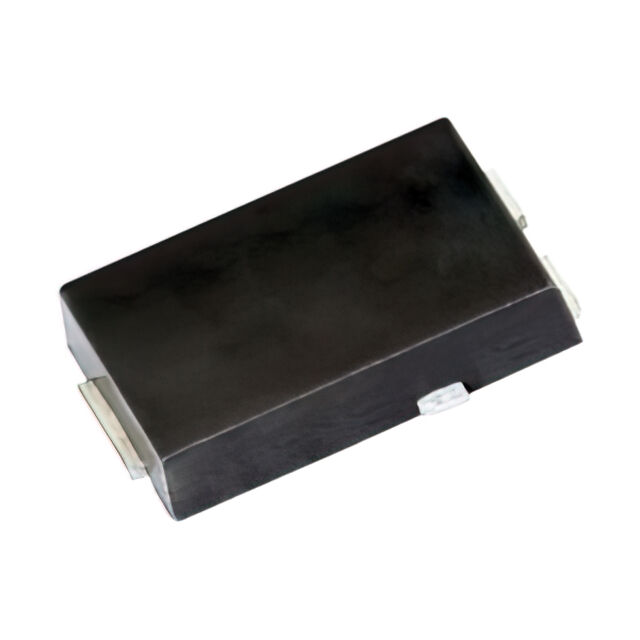

lmages are for reference only.VS-6ESH06HM3/87A
DIODE GEN PURP 600V 6A TO277A
DatasheetTO-277, 3-PowerDFN
40,007 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 600 V 6A Surface Mount TO-277A (SMPC)
VS-6ESH06HM3/87A
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | FRED Pt® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 6A |
| Voltage - Forward (Vf) (Max) @ If | 1.8 V @ 6 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 40 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 600 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-277, 3-PowerDFN |
| Supplier Device Package | TO-277A (SMPC) |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Base Product Number | 6ESH06 |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |
| Part Number | VS-6ESH06HM3/86A | VS-6ESH01-M3/86A | VS-6ESH01-M3/87A | VS-6ESH01HM3/86A |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE GEN PURP 600V 6A TO277A | DIODE GEN PURP 100V 6A TO277A | DIODE GEN PURP 100V 6A TO277A | DIODE GEN PURP 100V 6A TO277A |
| Series | FRED Pt® | FRED Pt® | FRED Pt® | FRED Pt® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
