VS-VSKH71/04

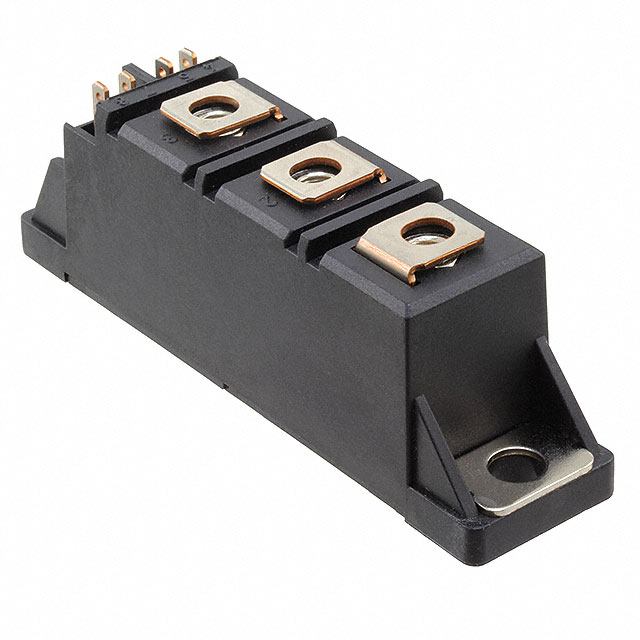

lmages are for reference only.VS-VSKH71/04
MODULE THYRISTOR 75A ADD-A-PAK
DatasheetADD-A-PAK (3 + 4)
61,210 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
SCR Module 400 V 165 A Series Connection - SCR/Diode Chassis Mount ADD-A-PAK (3 + 4)
VS-VSKH71/04
| Category | Discrete Semiconductor Products - Thyristors - SCRs Modules |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Structure | Series Connection - SCR/Diode |
| Number of SCRs, Diodes | 1 SCR, 1 Diode |
| Voltage - Off State | 400 V |
| Current - On State (It (AV)) (Max) | 75 A |
| Current - On State (It (RMS)) (Max) | 165 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 1300A, 1360A |
| Current - Hold (Ih) (Max) | 250 mA |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | ADD-A-PAK (3 + 4) |
| Base Product Number | VSKH71 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | VS-VSKH71/04 | VS-VSKH71/06 | VS-VSKH71/06 | VS-VSKH71/08 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MODULE THYRISTOR 75A ADD-A-PAK | MODULE THYRISTOR 75A ADD-A-PAK | MODULE THYRISTOR 75A ADD-A-PAK | MODULE THYRISTOR 75A ADD-A-PAK |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
