VSML2512S3R001FW
lmages are for reference only.VSML2512S3R001FW
RES 0.001 OHM 1% 3W 2512
Datasheet2512 (6432 Metric)
40,454 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 mOhms ±1% 3W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense, Pulse Withstanding Thick Film
VSML2512S3R001FW
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Delta Electronics/Cyntec |
| Series | VSML |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 1 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 3W |
| Composition | Thick Film |
| Features | Automotive AEC-Q200, Current Sense, Pulse Withstanding |
| Temperature Coefficient | ±75ppm/°C |
| Operating Temperature | -65°C ~ 170°C |
| Package / Case | 2512 (6432 Metric) |
| Supplier Device Package | 2512 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.250" L x 0.126" W (6.35mm x 3.20mm) |
| Height - Seated (Max) | 0.033" (0.85mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | VSML2512S3 |
| Product Attribute |  |
 |
 |
 |

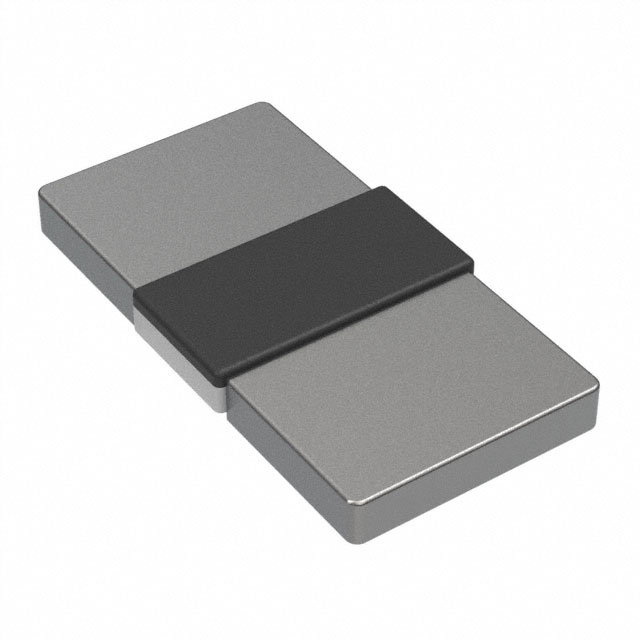

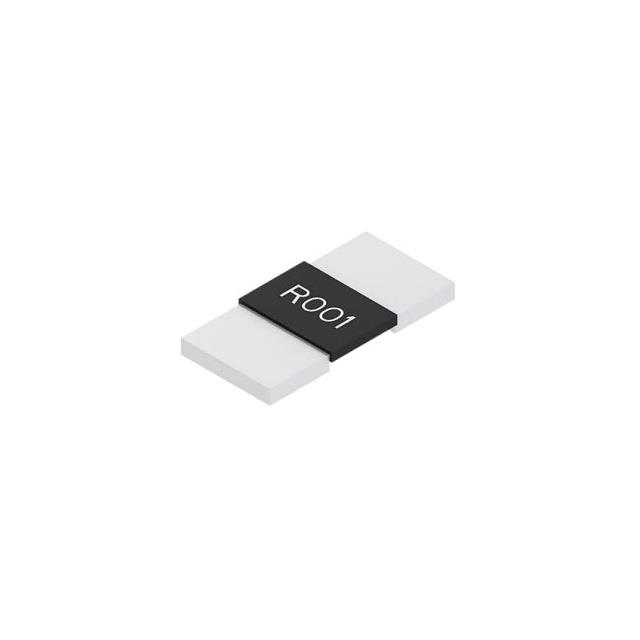

| Part Number | VSML2512S3-0M50F | VSML2512S3-0M80F | VSML2512S3-R002F | VSML2512S3-R008F |
| Manufacturer | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES SMD 500 UOHM 1% 3W 2512 | RES SMD 800 UOHM 1% 3W 2512 | RES SMD 0.002 OHM 1% 3W 2512 | RES 0.008 OHM 1% 3W 2512 |
| Series | Delta Electronics/Cyntec | Delta Electronics/Cyntec | Delta Electronics/Cyntec | |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
