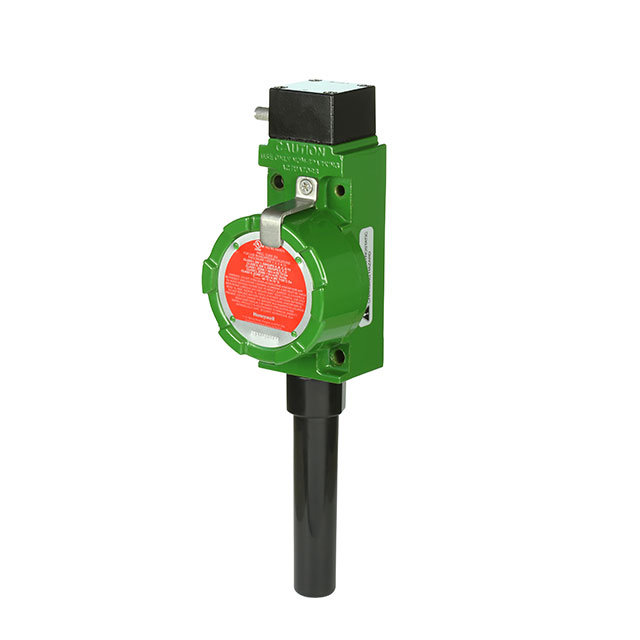

WBX1A00ABA4
lmages are for reference only.WBX1A00ABA4
SWITCH SNAP ACTION SPDT
Datasheet-
75,691 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Switch SPDT Chassis Mount
WBX1A00ABA4
| Category | Switches - Limit Switches - |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | WBX |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Base Product Number | WBX1A |
| Circuit | SPDT |
| Switch Function | On-Mom |
| Current Rating (Amps) | - |
| Voltage Rating - AC | - |
| Voltage Rating - DC | - |
| Actuator Type | Side Rotary - No Lever |
| Mounting Type | Chassis Mount |
| Termination Style | Connector |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Electrical Life | - |
| Mechanical Life | - |
| Features | Actuator Mounted Left Side |
| Operating Force | 46gfm |
| Release Force | - |
| Operating Position | - |
| Pretravel | 17.5° |
| Differential Travel | 7° |
| Overtravel | 60° |
| Operating Temperature | -40°C ~ 70°C |
| Product Attribute |  |
 |
 |
 |

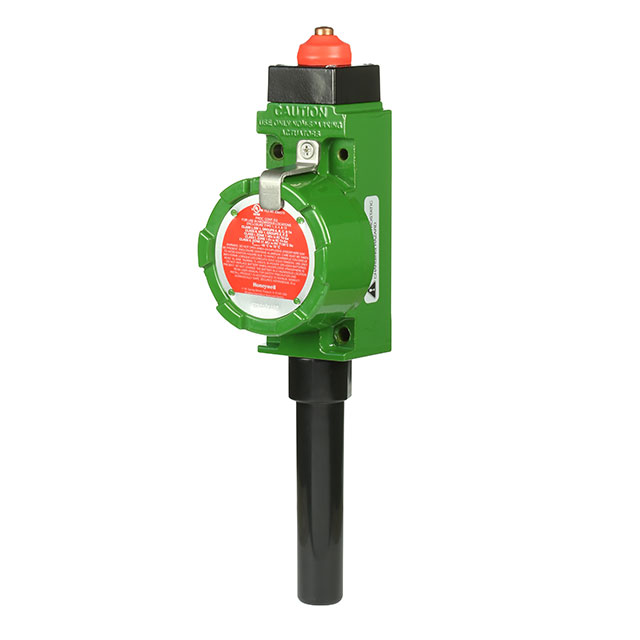

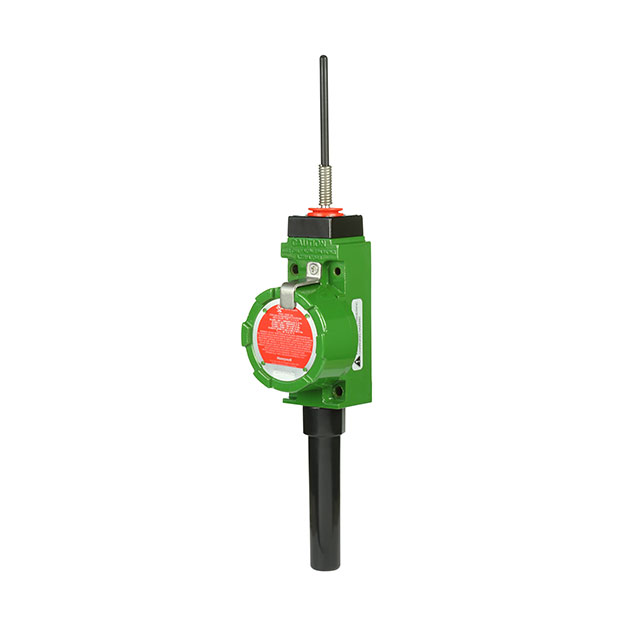

| Part Number | WBX1A00ABA | WBX1A00ABA3 | WBX1A00ABC | WBX1A00ABJ7A |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SWITCH SNAP ACTION SPDT | SWITCH SNAP ACTION SPDT | SWITCH SNAP ACTION SPDT | SWITCH SNAP ACTION SPDT |
| Series | WBX | WBX | WBX | WBX |
| Packaging | Bulk | Bulk | Bulk | Bulk |
