WCI1608CPR10GDG

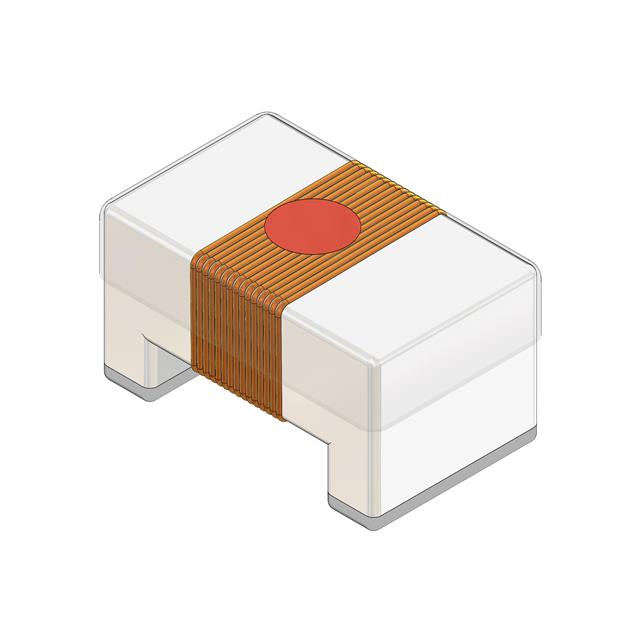

lmages are for reference only.WCI1608CPR10GDG
CHIP IND 1608,100NH,G,34Q,0.4A,4
Datasheet0603 (1608 Metric)
32,208 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 nH Unshielded Wirewound Inductor 400 mA 580mOhm Max 0603 (1608 Metric)
WCI1608CPR10GDG
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | INPAQ Technology Co., Ltd |
| Series | WCI1608CP |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 100 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 400 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 580mOhm Max |
| Q @ Freq | 34 @ 150MHz |
| Frequency - Self Resonant | 1.4GHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 125°C |
| Inductance Frequency - Test | 150 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Size / Dimension | 0.071" L x 0.044" W (1.80mm x 1.12mm) |
| Height - Seated (Max) | 0.040" (1.02mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | WCI1608CP33NJDG | WCI1608CP3N3GDG | WCI1608CP56NGDG | WCI1608CP56NJDG |
| Manufacturer | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CHIP IND 1608,33NH,G,40Q,0.6A,4K | CHIP IND 1608,3.3NH,G,20Q,0.7A,4 | CHIP IND 1608,56NH,G,38Q,0.6A,4K | CHIP IND 1608,56NH,J,38Q,0.6A,4K |
| Series | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd |
| Packaging | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) |
