WCI2520CPR33GDG

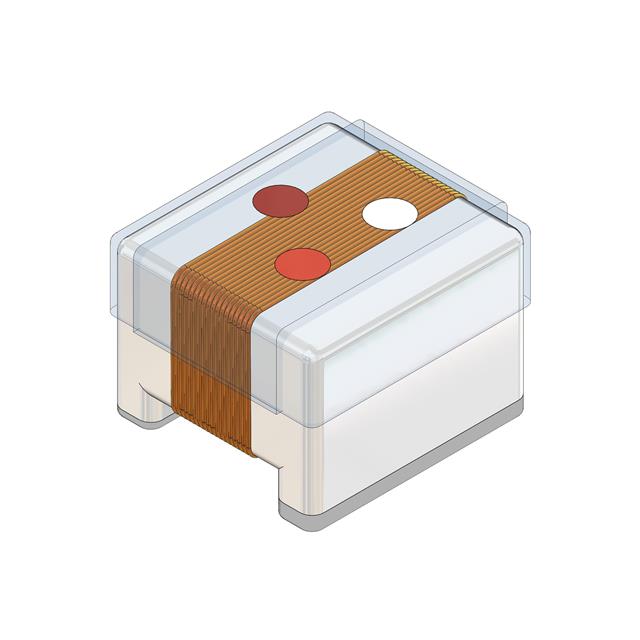

lmages are for reference only.WCI2520CPR33GDG
CHIP IND 2520,330NH,G,45Q,0.45A,
Datasheet1008 (2520 Metric)
53,724 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
330 nH Unshielded Wirewound Inductor 450 mA 1.05Ohm Max 1008 (2520 Metric)
WCI2520CPR33GDG
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | INPAQ Technology Co., Ltd |
| Series | WCI2520CP |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 330 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 450 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.05Ohm Max |
| Q @ Freq | 45 @ 100MHz |
| Frequency - Self Resonant | 570MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 125°C |
| Inductance Frequency - Test | 25 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 |
| Size / Dimension | 0.115" L x 0.110" W (2.92mm x 2.79mm) |
| Height - Seated (Max) | 0.080" (2.03mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | WCI2520CP47NJDG | WCI2520CP56NGDG | WCI2520CP68NGDG | WCI2520CP82NGDG |
| Manufacturer | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CHIP IND 2520,47NH,J,65Q,1.0A,2K | CHIP IND 2520,56NH,G,65Q,1.0A,2K | CHIP IND 2520,68NH,G,65Q,1.0A,2K | CHIP IND 2520,82NH,G,60Q,1.0A,2K |
| Series | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd |
| Packaging | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) |
