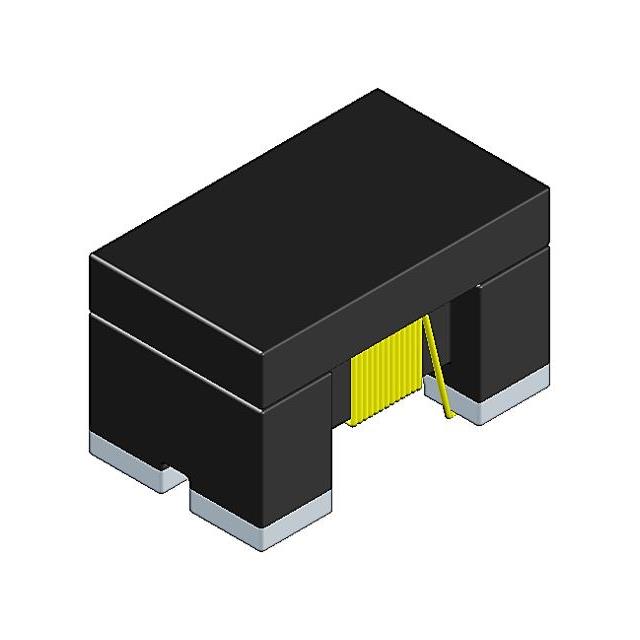

lmages are for reference only.WCM 3225F2SF-601T10
2 LINE COMMON MODE CHOKE SURFACE
DatasheetHorizontal, 4 PC Pad
94,893 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 Line Common Mode Choke Surface Mount 600 Ohms @ 100 MHz 1A DCR 200mOhm
WCM 3225F2SF-601T10
| Category | Filters - Common Mode Chokes - |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. |
| Series | WCM3225F2SF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 1A |
| DC Resistance (DCR) (Max) | 200mOhm |
| Voltage Rating - DC | 50V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height (Max) | 0.094" (2.40mm) |
| Package / Case | Horizontal, 4 PC Pad |
| Base Product Number | - |
| Impedance @ Frequency | 600 Ohms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | WCM 1211FASV-102-LM | WCM 1211FASV-701-LM | WCM 1513FASV-551-LM | WCM 1513FASV-701-LM |
| Manufacturer | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. | TAI-TECH Advanced Electronics Co., Ltd. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 2 LINE COMMON MODE CHOKE SURFACE | 2 LINE COMMON MODE CHOKE SURFACE | 2 LINE COMMON MODE CHOKE SURFACE | 2 LINE COMMON MODE CHOKE SURFACE |
| Series | WCM1211FASV-LM | WCM1211FASV-LM | WCM1513FASV-LM | WCM1513FASV-LM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
