WLCM1005Z0S1N0TB

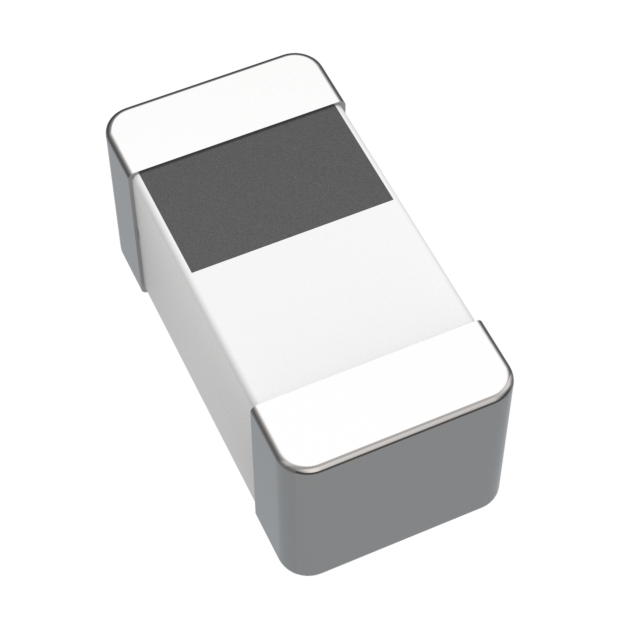

lmages are for reference only.WLCM1005Z0S1N0TB
INDUCTOR FIXED 1.0NH 0402
Datasheet0402 (1005 Metric)
82,149 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1 nH Unshielded Multilayer Inductor 1 A 80mOhm Max 0402 (1005 Metric)
WLCM1005Z0S1N0TB
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Walsin Technology Corporation |
| Series | CM |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Multilayer |
| Material - Core | Ceramic |
| Inductance | 1 nH |
| Tolerance | ±0.3nH |
| Current Rating (Amps) | 1 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 80mOhm Max |
| Q @ Freq | 8 @ 100MHz |
| Frequency - Self Resonant | 10GHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
 |
| Part Number | WLCM1005Z0S1N1TB | WLCM1005Z0S1N1TB | WLCM1005Z0S1N2TB | WLCM1005Z0S1N3TB |
| Manufacturer | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | INDUCTOR FIXED 1.1NH 0402 | INDUCTOR FIXED 1.1NH 0402 | INDUCTOR FIXED 1.2NH 0402 | INDUCTOR FIXED 1.3NH 0402 |
| Series | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation | Walsin Technology Corporation |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
