WN3S40100CQ
Manufacturer
WeEn SemiconductorsDescription
DIODE ARR SCHOT 100V 20A TO220AB
Datasheet
DatasheetPackage
TO-220-3
In Stock
84,083 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
WN3S40100CQ
WN3S40100CQ
lmages are for reference only.Payment Methods
Delivery Services
Diode Array 1 Pair Common Cathode 100 V 20A Through Hole TO-220-3
Quick Inquiry
WN3S40100CQ
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | WeEn Semiconductors |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) (per Diode) | 20A |
| Voltage - Forward (Vf) (Max) @ If | 780 mV @ 20 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 50 µA @ 100 V |
| Operating Temperature - Junction | 150°C |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220AB |
| Base Product Number | WN3S40 |
| Reverse Recovery Time (trr) | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

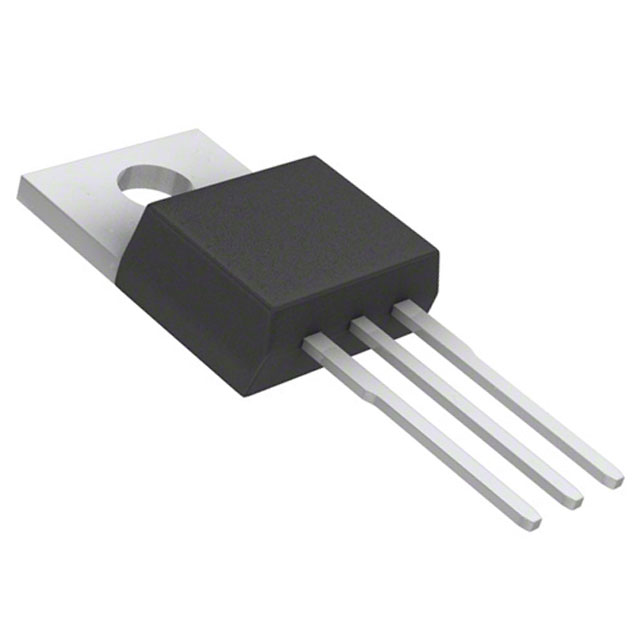

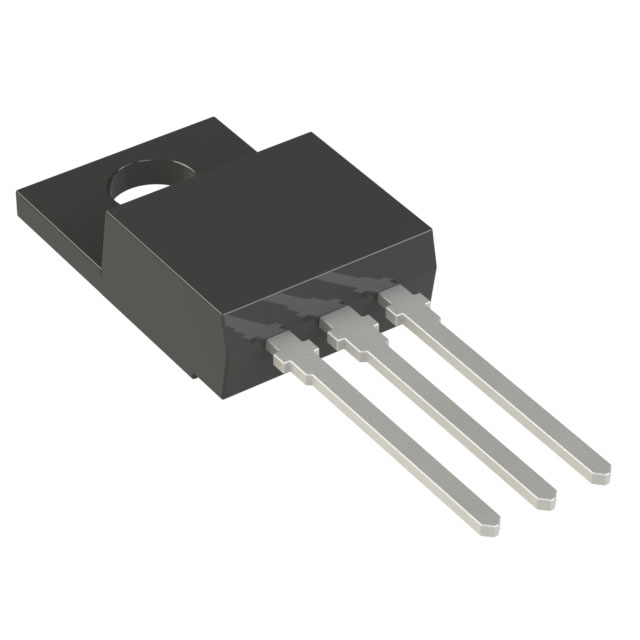

| Part Number | WN3S40H100CQ | WN3S40H100CXQ | WN3S3045CQ | WNSC2D20650CJQ |
| Manufacturer | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DIODE ARR SCHOT 100V 20A TO220AB | DIODE ARR SCHOTT 100V 20A TO220F | DIODE ARR SCHOTT 45V 15A TO220AB | DIODE ARRAY SIC 650V 20A TO-3PF |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
