Product CatalogPart Number
WP57EGW
Manufacturer
KingbrightDescription
LED GRN/RED DIFFUSED T-1 3/4 T/H
Datasheet
DatasheetPackage
Radial
In Stock
18,037 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
WP57EGW
WP57EGW
lmages are for reference only.Payment Methods
Delivery Services
Green, Red 568nm Green, 617nm Red LED Indication - Discrete 2.2V Green, 2V Red Radial
Quick Inquiry
WP57EGW
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Kingbright |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Color | Green, Red |
| Configuration | Bidirectional |
| Lens Color | White |
| Lens Transparency | Diffused |
| Millicandela Rating | 30mcd Green, 14mcd Red |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 30° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 568nm Green, 617nm Red |
| Wavelength - Peak | 565nm Green, 627nm Red |
| Features | - |
| Package / Case | Radial |
| Supplier Device Package | T-1 3/4 |
| Size / Dimension | 5.00mm Dia |
| Height (Max) | 8.60mm |
| Base Product Number | WP57 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

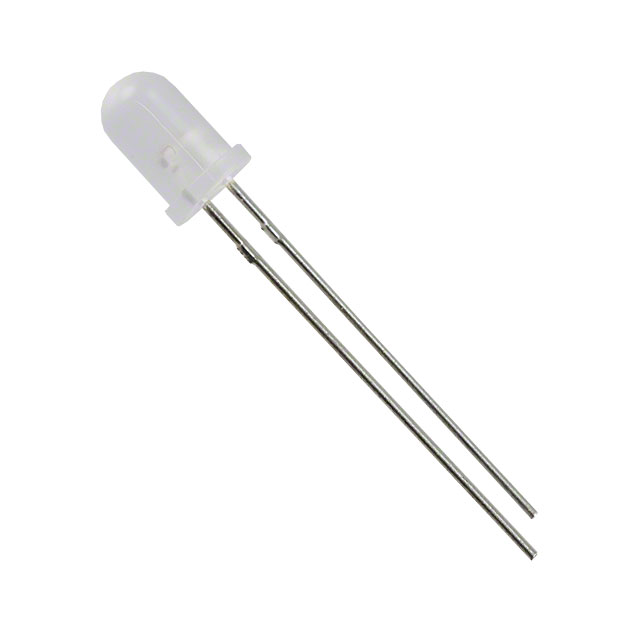

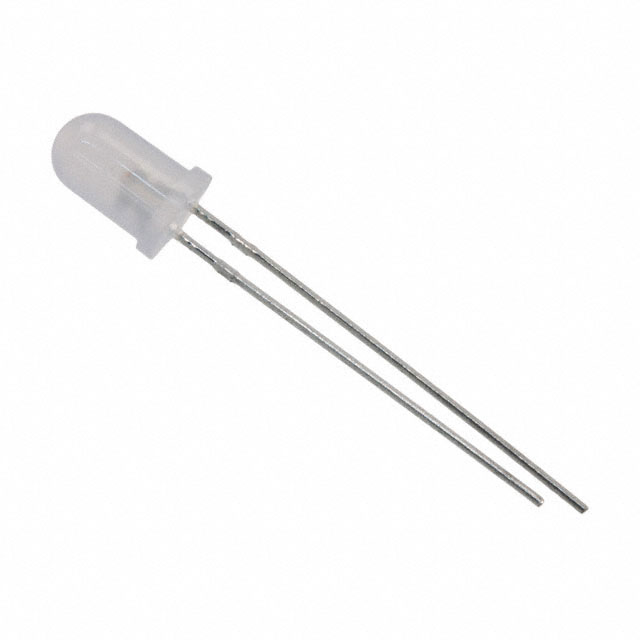

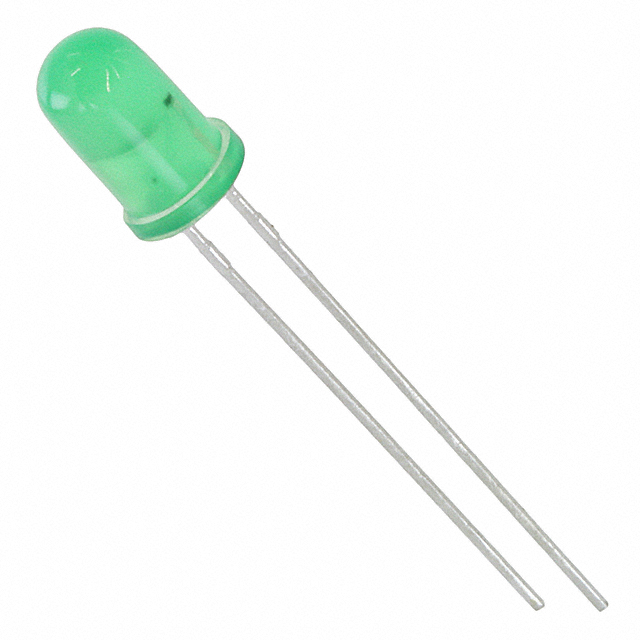

| Part Number | WP57CGKSYKW | WP57EYW | WP57GGD | WP57GYW |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GRN/YLW DIFFUSED T-1 3/4 T/H | LED RED/YLW DIFFUSED T-1 3/4 T/H | LED GREEN DIFFUSED T-1 3/4 T/H | LED GRN/YLW DIFFUSED T-1 3/4 T/H |
| Series | Kingbright | Kingbright | Kingbright | Kingbright |
| Packaging | Bulk | Bulk | Bulk | Bulk |
