Product CatalogPart Number
WP59GYC
Manufacturer
KingbrightDescription
LED GRN/YLW CLEAR T-1 3/4 T/H
Datasheet
DatasheetPackage
Radial - 3 Leads
In Stock
66,165 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
WP59GYC
WP59GYC
lmages are for reference only.Payment Methods
Delivery Services
Green, Yellow 568nm Green, 588nm Yellow LED Indication - Discrete 2.2V Green, 2.1V Yellow Radial - 3 Leads
Quick Inquiry
WP59GYC
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Kingbright |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Color | Green, Yellow |
| Configuration | Common Cathode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 120mcd Green, 80mcd Yellow |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2.1V Yellow |
| Current - Test | 20mA Green, 20mA Yellow |
| Viewing Angle | 24° |
| Mounting Type | Through Hole |
| Wavelength - Dominant | 568nm Green, 588nm Yellow |
| Wavelength - Peak | 565nm Green, 590nm Yellow |
| Features | - |
| Package / Case | Radial - 3 Leads |
| Supplier Device Package | T-1 3/4 |
| Size / Dimension | 5.00mm Dia |
| Height (Max) | 11.35mm |
| Base Product Number | WP59 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

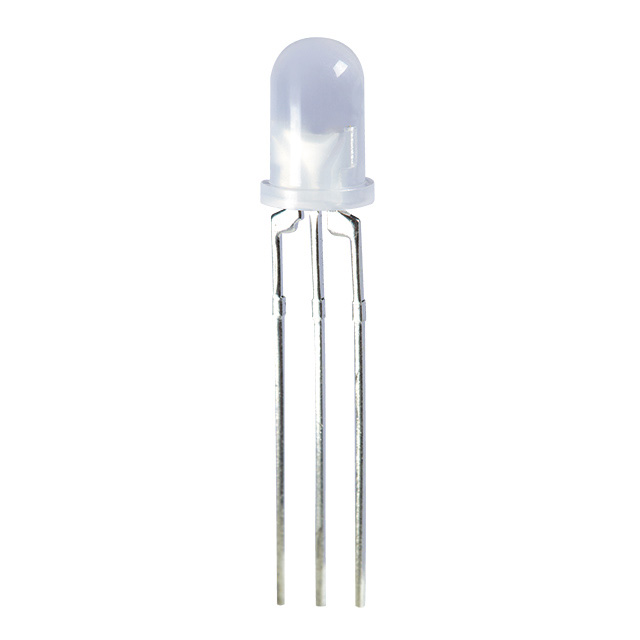

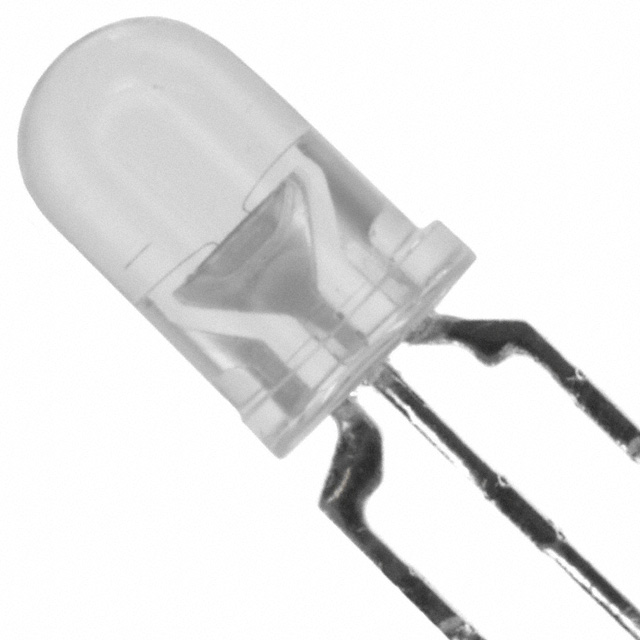

| Part Number | WP59GYW | WP59EGC | WP59EGW | WP59EGW/CA |
| Manufacturer | Kingbright | Kingbright | Kingbright | Kingbright |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GRN/YLW DIFFUSED T-1 3/4 T/H | LED GREEN/RED CLEAR T-1 3/4 T/H | LED GRN/RED DIFFUSED T-1 3/4 T/H | LED GRN/RED DIFFUSED T-1 3/4 T/H |
| Series | Kingbright | Kingbright | Kingbright | Kingbright |
| Packaging | Bulk | Bulk | Bulk | Bulk |
