WPC2512QLR047FYR

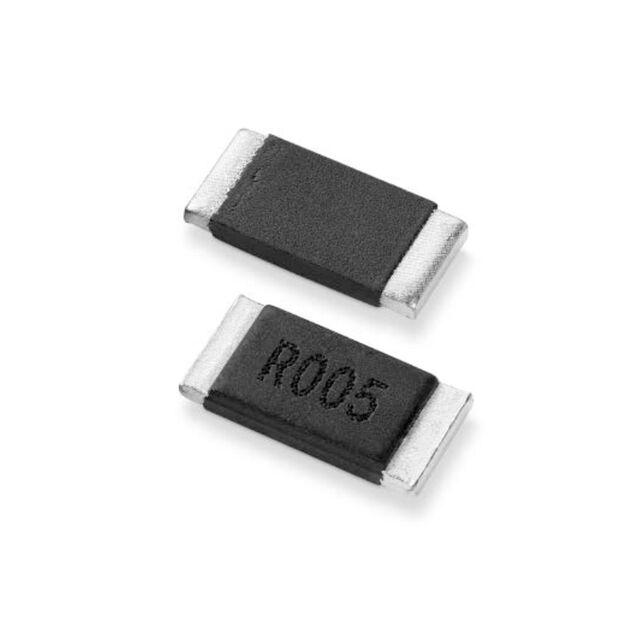

lmages are for reference only.WPC2512QLR047FYR
2T WPC2512 3W 50PPM 47 MOHM 1.0%
Datasheet2512 (6432 Metric)
79,760 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
47 mOhms ±1% 3W Chip Resistor 2512 (6432 Metric) Current Sense, High Voltage Metal Element
WPC2512QLR047FYR
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Littelfuse Inc. |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Mfr | Littelfuse Inc. |
| Series | WPC |
| Resistance | 47 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 3W |
| Composition | Metal Element |
| Features | Current Sense, High Voltage |
| Temperature Coefficient | ±50ppm/°C |
| Operating Temperature | -55°C ~ 170°C |
| Package / Case | 2512 (6432 Metric) |
| Supplier Device Package | 2512 |
| Ratings | - |
| Size / Dimension | 0.252" L x 0.126" W (6.40mm x 3.20mm) |
| Height - Seated (Max) | 0.043" (1.10mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | WPC2512QLR002FWR | WPC2512QLR002FYR-A | WPC2512QLR003FWR | WPC2512QLR003FYR-A |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | 2T WPC2512 3W 50PPM 2 MOHM 1.0% | AEQ-Q200 RESISTOR | 2T WPC2512 3W 50PPM 3 MOHM 1.0% | AEQ-Q200 RESISTOR |
| Series | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
