WRF2409S-3WR2

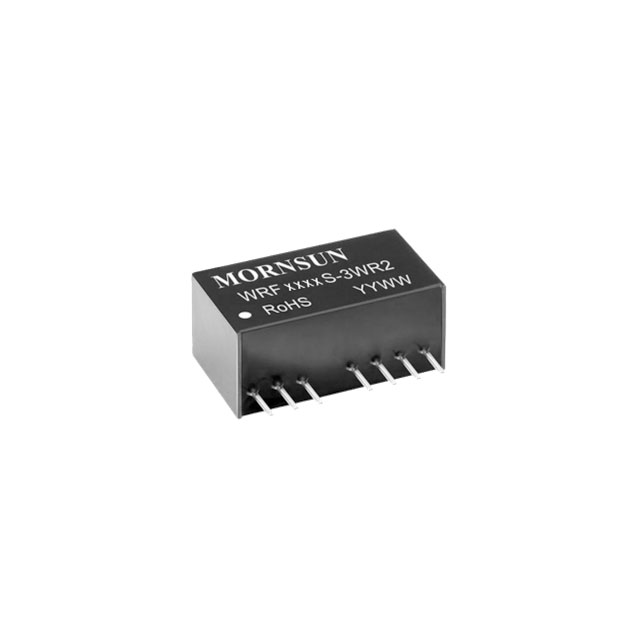

lmages are for reference only.WRF2409S-3WR2
ISOLATED MODULE DC DC CONVERTER
Datasheet8-SIP Module, 7 Leads
36,491 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 9V 333mA 18V - 36V Input
WRF2409S-3WR2
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 333mA |
| Power (Watts) | 2.9 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 83% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-SIP Module, 7 Leads |
| Size / Dimension | 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | 60950-1 |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | WRF0503S-1WR2 | WRF0505S-1WR2 | WRF0505S-3WR2 | WRF0509S-3WR2 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ISOLATED MODULE DC DC CONVERTER | ISOLATED MODULE DC DC CONVERTER | ISOLATED MODULE DC DC CONVERTER | ISOLATED MODULE DC DC CONVERTER |
| Series | ||||
| Packaging | WRF_S-1WR2 (1W) | WRF_S-1WR2 (1W) | WRF_S - 3WR2 (3W) | WRF_S - 3WR2 (3W) |
