WRFI0603-S-R22GT-CT
lmages are for reference only.Payment Methods
Delivery Services
220 nH Wirewound Inductor 250 mA 1.6Ohm 0603 (1608 Metric)
WRFI0603-S-R22GT-CT
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Venkel |
| Series | WRFI |
| Packaging | Strip |
| RoHS Status | RoHS Compliant |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 220 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 250 mA |
| Current - Saturation (Isat) | - |
| Shielding | - |
| DC Resistance (DCR) | 1.6Ohm |
| Q @ Freq | 25 @ 100MHz |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.071" L x 0.044" W (1.80mm x 1.12mm) |
| Height - Seated (Max) | 0.040" (1.02mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

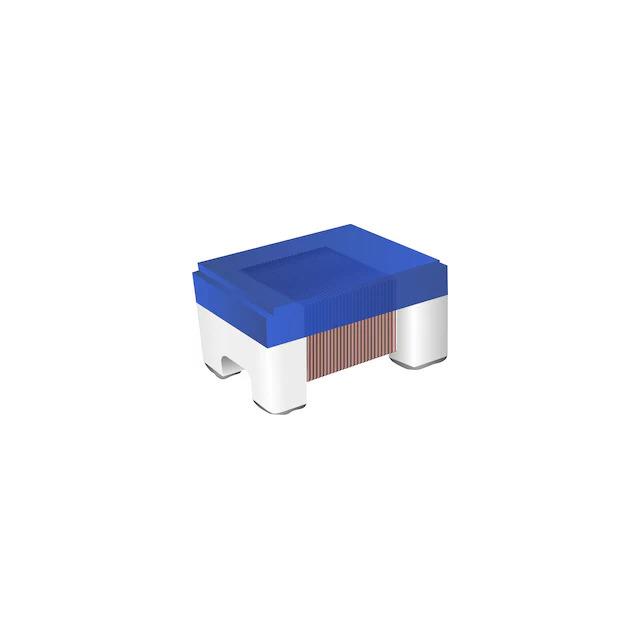

| Part Number | WRFI0603-S-R22GT | WRFI0603-S-R22JT | WRFI0603-S-R22JT-CT | WRFI0603-S-R26JT-CT |
| Manufacturer | Venkel | Venkel | Venkel | Venkel |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | Wirewound RF Inductor,0603,220nH | Wirewound RF Inductor,0603,220nH | Wirewound RF Inductor,0603,220nH | Wirewound RF Inductor,0603,260nH |
| Series | Venkel | Venkel | Venkel | Venkel |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Strip | Strip |
